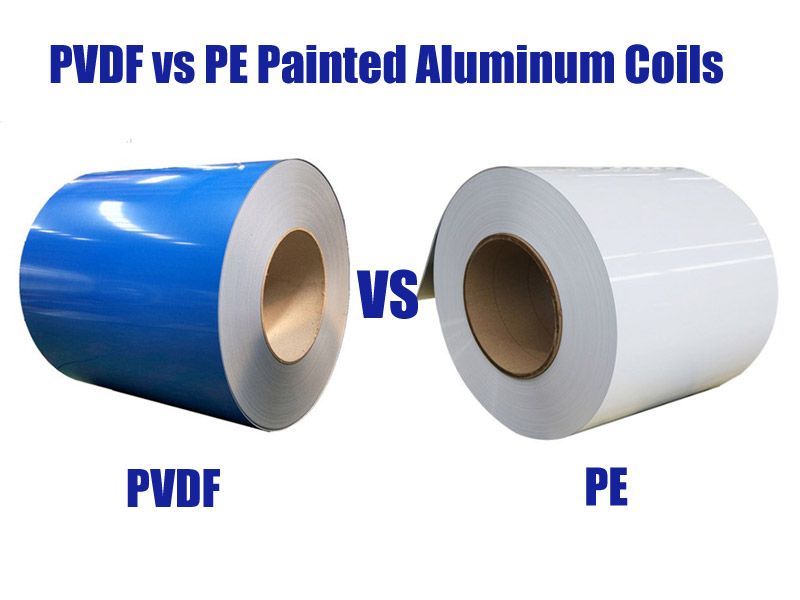

Within the product range of pre-painted aluminum coils, PVDF (fluorocarbon) and PE (polyester) coatings represent the two primary finishing options. These correspond to different levels of weather resistance and specific application scenarios, with clear distinctions in material composition, processing costs, and service life. As a professional supplier of pre-painted aluminum coils, BCM Aluminum offers a comprehensive portfolio of coating solutions; we provide precise product selection tailored to specific project requirements and budgetary constraints, alongside large-scale supply capabilities.

In terms of coating composition and process fundamentals, these two types of painted aluminum coils utilize entirely different film-forming systems. PE coatings rely on high-molecular-weight polyester resins as the primary film-forming agent and are cured via a "double-coat, double-bake" process at temperatures ranging from 200–220°C. PVDF coatings, by contrast, are based on a 70% concentration of polyvinylidene fluoride (PVDF) resin—specifically Kynar 500®—combined with acrylic resins and inorganic pigments; they require a higher baking temperature of 230–250°C. Consequently, both the raw material costs and the process complexity for PVDF coatings are significantly higher than those for PE coatings. A comparison of the core specifications for these two types of products is provided below:

Differences in core performance directly dictate the application scope. PE painted aluminum coil offer superior flexibility and excellent deep-drawing characteristics, making them ideal for components requiring complex forming; they are well-suited for outdoor use in standard inland climates. PVDF coatings, leveraging the high bond energy of C-F (carbon-fluorine) chemical bonds, provide robust resistance against acid rain, industrial exhaust, and coastal salt-spray corrosion. With exceptional color and gloss retention, they are the preferred choice for building envelopes exposed to harsh environments over the long term.

Product selection should align with the project's specific environment and design lifespan, while balancing initial procurement costs against total life-cycle costs. PE coatings offer an excellent price-to-performance ratio, making them suitable for interior decoration, home appliance panels, exterior trim for standard inland buildings, and residential gutters. PVDF painted aluminum coil are positioned for the high-end, weather-resistant market, serving applications such as coastal structures, high-altitude regions with intense UV exposure, high-rise commercial curtain walls, and outdoor signage. Based on our extensive supply experience, opting for PVDF in standard inland environments leads to unnecessary expenditure, whereas using PE coatings in highly corrosive coastal areas can result in fading and chalking within just 3–5 years—ultimately driving up long-term renovation costs.

In practical applications, a logistics park project in the inland region of Texas, USA, utilized PE-coated aluminum coils (on a 3003 alloy substrate) supplied by BCM; after six years of service, the material remains stable in appearance and offered a significant advantage in initial procurement costs. Conversely, a coastal commercial building project in Florida employed PVDF-coated products on the same substrate; after eight years, there is no visible fading, resulting in a superior total life-cycle cost.

BCM Aluminum offers a full range of pained aluminum coils—including PE, HDP, and PVDF—across mainstream substrates such as 3003, 3105, and 5052. We support customized specifications and color matching, maintain ample inventory, and provide expert selection guidance and bulk supply services to clients worldwide.
