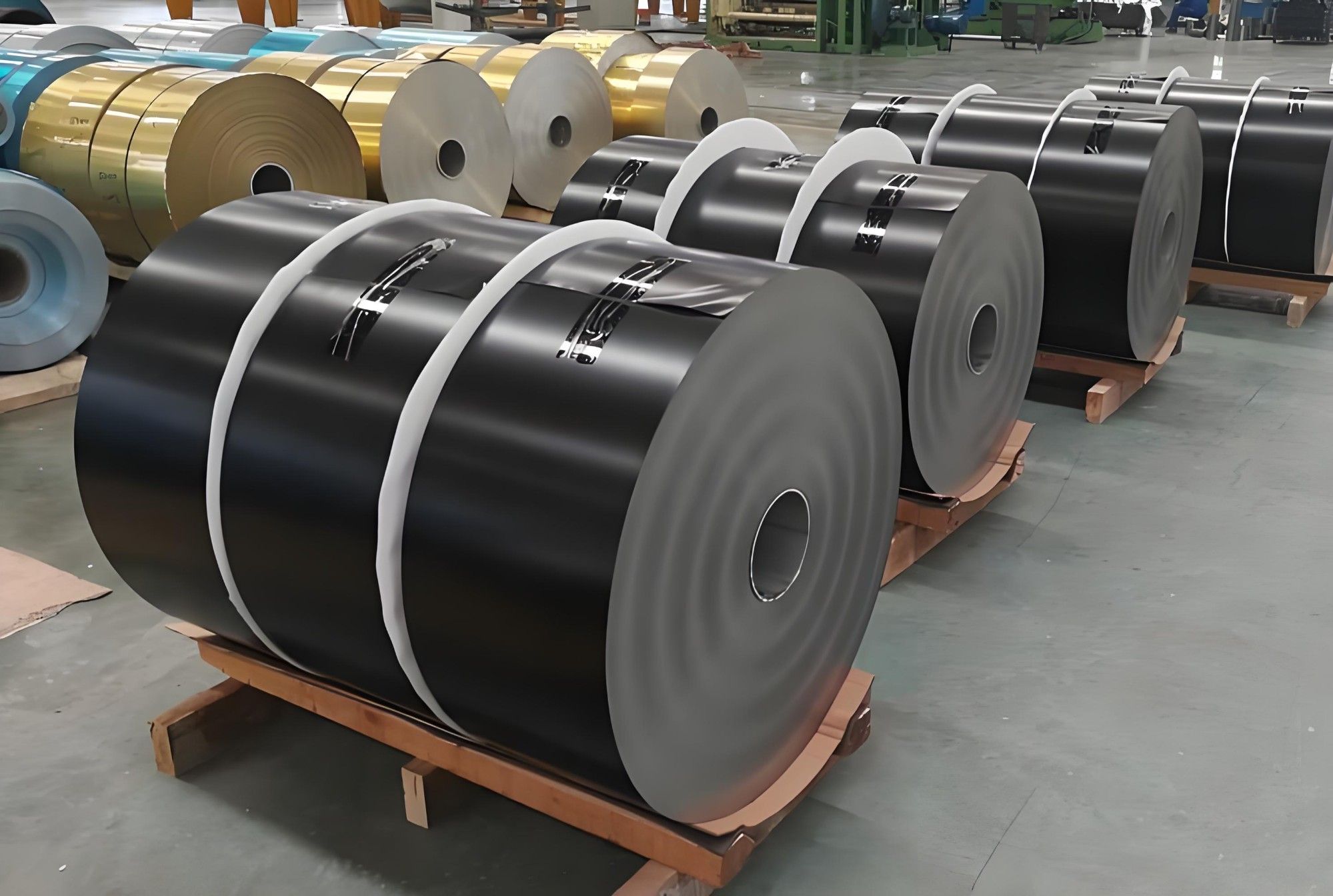

Kynar coated aluminum coils are the standard weather-resistant material for high-end outdoor architectural projects in North America. Formulated with PVDF resin, they effectively withstand intense UV radiation, marine salt spray, and industrial exhaust, offering a service life of 15–20 years. As a professional Kynar-coated aluminum coil supplier, BCM Aluminum has established a comprehensive quality control system from base metal rolling and surface pretreatment to fluorocarbon coating, ensuring the luminum coil products fully meet the performance standards and procurement requirements of the North American construction market.

The Kynar PVDF coated aluminum coil range covers the three most common industry alloy grades, suitable for various application conditions.

The flagship AA3003-H14 (aluminum-manganese) alloy offers balanced forming properties, making it the standard choice for gutter fabrication and exterior wall trim projects.

For high-rigidity applications, the AA3105-H14 alloy provides a 20% increase in dent resistance, making it ideal for roofing systems and exterior wall cladding.

For highly corrosive coastal areas, the AA5052-H32 (aluminum-magnesium) alloy is available, offering superior salt spray resistance. All base materials comply with ASTM B209 standards.

Standard thicknesses range from 0.3mm to 1.5mm (including the common North American gutter gauges of 0.027" and 0.032"). Widths are precision-slit to match customer roll-forming equipment; thickness tolerance is controlled within ±0.02mm, and surface flatness is ≤0.3mm/m, ensuring the material is ready for immediate production without the need for additional leveling.

The coating system of Kynar PVDF coated aluminum coil strictly adheres to the AAMA 2605 highest-level weatherability standard. BCM’s Kynar coating utilizes genuine Kynar 500 fluorocarbon resin with a consistent resin content of ≥70%. Applied via a "double-coat, double-bake" process and cured at high temperatures, the coating features a front-side dry film thickness of ≥40μm and a back-side epoxy anti-corrosion primer thickness of ≥10μm. Third-party testing confirms that the product maintains a color difference (ΔE) of ≤2.0 and a gloss retention of ≥80% after 2,000 hours of accelerated xenon-arc aging; it shows no blistering, rusting, or peeling after 2,000 hours of neutral salt spray testing. The coating achieves an ASTM D3359 4B adhesion rating, with the paint film remaining intact and crack-free after bending and roll forming. Production utilizes a fully automated, closed-loop color-matching system, ensuring a color difference (ΔE) of ≤1.0 within the same batch and accommodating customization across the full range of RAL and Pantone color standards.

Drawing on years of export experience, we recognize that a common quality risk in Kynar coated aluminum coil procurement is suppliers passing off low-fluorine polyester coatings as genuine Kynar products; while these imitations may look identical initially, they typically suffer from chalking and fading after just 3–5 years of outdoor exposure. Every painted aluminum coil shipped by BCM Aluminum comes with a fluorine content test report and AAMA 2605 compliance documentation, allowing customers to verify specifications through direct sampling. In a notable 2024 project, BCM supplied charcoal-grey Kynar-coated aluminum coils (3105 alloy) for the exterior cladding of a coastal commercial building in British Columbia, Canada; despite the high-salinity marine environment, all three consecutive shipments passed the client's acceptance inspection. Additionally, BCM Aluminum supplied 0.032-inch white Kynar-coated aluminum gutter coils to a processor in Florida, USA—engineered to withstand the region's intense UV exposure—with customer feedback indicating no significant fading after 12 years of outdoor service.

BCM maintains ready stock of common specifications and best-selling colors, ensuring shipment from the port within 7–10 days for standard orders. We support procurement via full or consolidated containers for small-to-medium-sized clients and provide free samples for testing and verification. We welcome inquiries from global architectural engineering firms and metal processors.
