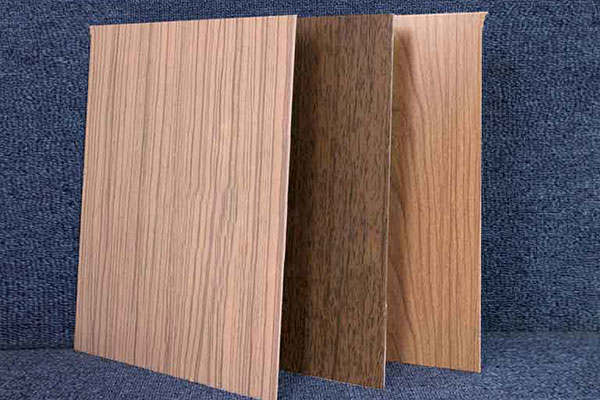

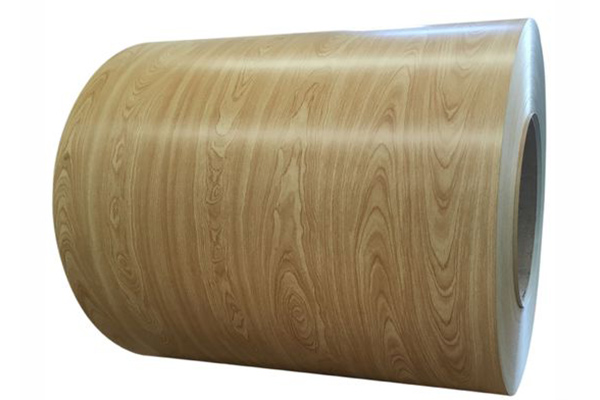

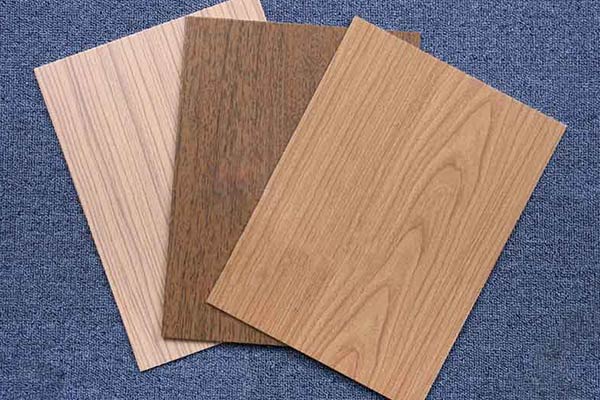

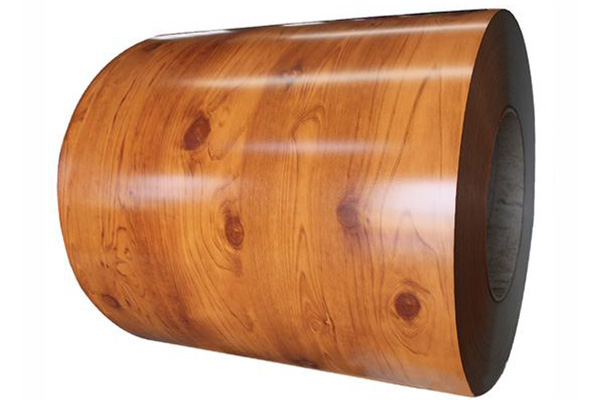

Wood grain aluminum sheet is a decorative material with a realistic wood grain pattern printed on the surface. It is scanned by high resolution, recorded in a computer program and manually modified to achieve a more realistic and three-dimensional effect after advanced roll coating process.
Wood grain aluminum is made of high-quality aluminum alloy and coated with a protective layer for durability and resistance to corrosion and weathering. The wood grain coating on aluminum provides several advantages over real wood. It is resistant to rot, decay, and insect damage, making it a more durable option. It is also lightweight, fire-resistant, and requires minimal maintenance. Additionally, wood grain coated aluminum is available in a wide range of colors and wood grain patterns, allowing for greater design flexibility.
Wood finish aluminum can be divided into indoor and outdoor coatings according to the environment and economy. The interior is generally a polyester coating with a dry film thickness of about 16-25 um and a shelf life of more than 10 years. The exterior is made of fluorocarbon coating, the dry film thickness is about 25-30um, and the warranty period is more than 15 years. Combining the durability of metal with the aesthetics of wood, it serves as an eco-friendly alternative to timber for architectural facades, cladding, siding, ceilings and interior/exterior decor.
Specification of Wood Grain Aluminum Sheet:
Alloy | AA1050, 1060, 1070, 1100, 3003, 3004, 3105, 5005, 5052, 6061, 8011, etc |
Coil thickness | 0.018-1.5mm |
Coil width | 30-2000mm, Standard 1240mm, MAX 2020mm |
Coil weight | 0.5 to 5.0 tons per coil |
Surface treatment | PE/PVDF coated, Wood grain |
color | Various wood grain patterns or customized |
Packing | Standard exporting packing/ or at buyer's requirement |
Trade Terms | FOB/CIF etc |
Diameter | 405mm, 505mm, 508mm |
Coating thickness | 14-28 microns（PE:≥14micron, PVDF:≥25micron） |
Coils core diameter | 150mm,405mm,505mm |
Temper | O - H112 |
gloss | 20-100%(matte:≥20，glossy：≥60） |
Standards and Specifications
ASTM | B209 |
ISO | ISO 26204 (alloy designations), ISO 6892 (mechanical testing),ISO 9001,ISO 14001. |
UNS | A91050 (United States Numbering System) |
Coating Parameter of Wood Grain Aluminium Sheet:
Item | POLYESTER | PVDF |
Thickness of coating film | ≥ 18 µm | ≥ 25µm |
Gloss deviation | gloss<70, tolerance≤10% | gloss<70, tolerance≤10% |
gloss≥70, tolerance≤5% | gloss≥70, tolerance≤5% |
Hardness of pencil | ≥3H | ≥3H |
Adhesion | no lower than class 1 | no lower than class 1 |
Flexibility | ≤2T | ≤2T |
Boiling water resistance | no change (2h) | no change (2h) |
Color difference | ΔE≤2.0 | ΔE≤2.0 |
MEK | ≥100 times | ≥150 times |
Warranty：
Regular PE: 3-5 years；
High Performance PE: 6-9 years；
PVDF: 15 years；
FEVE: Two coats: between 10-15 years；
FEVE: Three coats: 15-20 years.

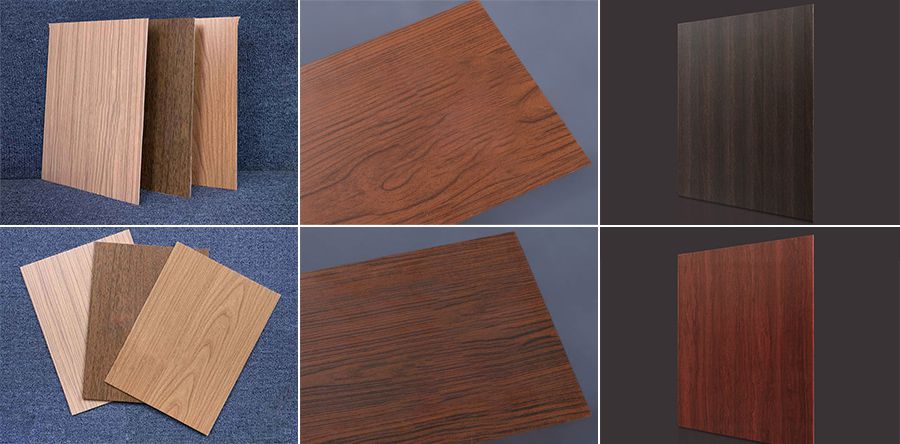

Color Options of Wood Grain Aluminum Coil:
Common Wood Grain Patterns:
Appearance: Features prominent grain patterns with a distinctive texture.
Colors: Can range from light beige to darker brown tones.
Appearance: Offers a smooth, fine grain with a subtle pattern.
Colors: Typically lighter shades, such as pale yellow or creamy white.
Appearance: Has a rich, dark grain with a deep, luxurious texture.
Colors: Dark brown to deep chocolate hues.
Appearance: Characterized by a smooth grain with a warm reddish tone.
Colors: Ranges from light reddish-brown to deeper burgundy shades.
Appearance: Displays a coarse, interlocking grain pattern.
Colors: Golden brown with darker streaks.
Appearance: Features a straight, fine grain with a rich, reddish-brown color.
Colors: Deep reddish-brown to dark chocolate shades.
Appearance: Displays a more rustic, knotty pattern typical of natural pine wood.
Colors: Light yellow to pale brown.
Appearance: Has a fine, even grain with a smooth texture.
Colors: Light cream to pale yellow.
Structure of Wood Coated Aluminum Coil:
Process of Coil Coating
Advantages of Wood Finish Aluminum Sheet:
Wood grain aluminum sheet provides a natural and rustic look to any application. It adds warmth and character to buildings, making them visually appealing.
Wood finish aluminum coil is highly resistant to weathering, corrosion, and UV rays. It does not fade or crack easily, ensuring a long lifespan and minimal maintenance requirements.
Compared to real wood, wood look aluminum coil is more affordable and cost-effective. It offers the same visual appeal as wood but with lower installation and maintenance costs.
Wood grain coated aluminum coil is lightweight, making it easy to handle and install. It can be easily cut and shaped to fit any application, reducing installation time and labor costs.
Wood grain aluminum coil is made from recycled materials and is fully recyclable at the end of its life. It is a sustainable and environmentally friendly alternative to real wood, which requires cutting down trees.
Applications of Wood Look Aluminum Sheet:
Create natural-looking building exteriors with enhanced weather protection.
Perfect for walls, ceilings, and decorative partitions, adding a touch of elegance and warmth to spaces.
Applied in shopping malls, office buildings, and retail stores for a professional yet natural look.
Used in airports, stations, and exhibition centers for aesthetic durability and reliable performance.
Packaging of Wooden Color Aluminium Sheet:
1) LCL by wooden pallet package, fumigation wooden pallet is available
2) FCL by wooden pallet package loaded in the container
3) FCL in bulk loaded in the container
4) Customized package according to your demands
Shipping:
7-15 days after receipt of payment(depend on order quantity)
