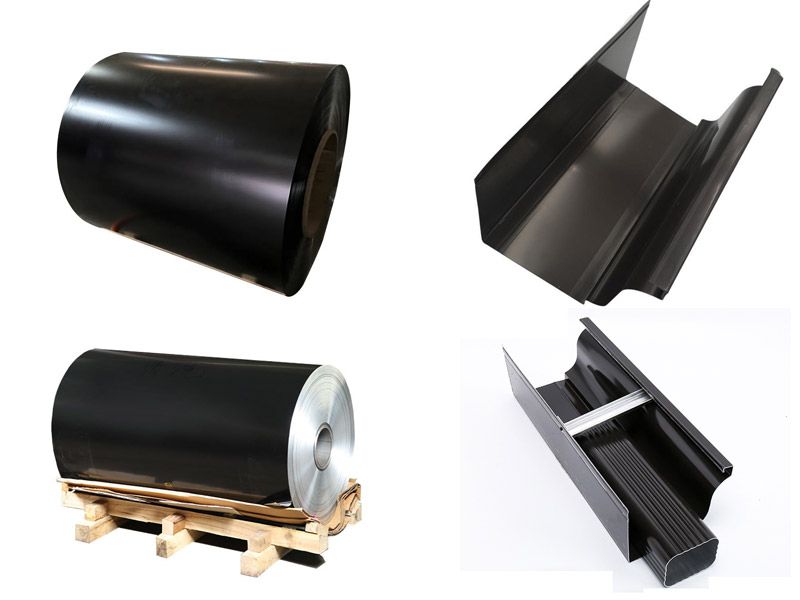

Black gutter coil is a key prepainted aluminum product used for on-site roll-forming of seamless gutters. It primarily serves the residential, townhouse, low-rise apartment, commercial storefront, warehouse, and light industrial sectors. The black aluminum gutter coil is processed via continuous roll-forming machines into various profiles—such as K-Style and Half-Round—and is used in conjunction with downspouts, elbows, end caps, hangers, and sealing systems.
Demand for black gutters in North American building exteriors has been steadily rising. They are particularly well-suited for modern-style homes, dark asphalt shingle roofs, metal roofing, brick facades, wood siding, and dark gray window and door systems. Common color options include black, matte Black, dark Bronze, charcoal, and royal brown. Black gutters accentuate the cohesive look of the roofline and create a unified visual aesthetic when paired with black fascia, soffits, window frames, and metal roofing.
Black aluminum gutter coils typically utilize 3105-H24 or 3003-H24 aluminum alloys. Among these, 3105 aluminum alloy is a popular choice for prepainted architectural aluminum due to its excellent strength, corrosion resistance, and suitability for pre-coating processes. Alloy 3105 typically contains 0.3%–0.8% manganese and 0.2%–0.8% magnesium, offering the balanced properties required for roll-forming.
Common thicknesses include:
0.027 inch (approx. 0.686 mm): The standard thickness for residential gutter coils in North America, suitable for conventional 5-inch and 6-inch K-Style gutters;
0.032 inch (approx. 0.813 mm): Suitable for projects in areas with heavy snowfall or high wind loads, or where superior dent resistance is required;
0.040 inch (approx. 1.016 mm): Primarily used for high-end residential homes, commercial buildings, or specialized drainage systems.
Common coil widths include 11.75 inches, 15 inches, and 18 inches. Typically, 11.75-inch gutter coils are used to form 5-inch K-style gutters, while 15-inch gutter coils are used for 6-inch K-style gutters.
Coil weight can be customized based on customer equipment and installation practices. In the North American market, common coil weights are approximately 250 lbs, 310 lbs, and 350 lbs, though metric-ton packaging is also an option.
Black aluminum gutter coils typically feature a dual-sided coating structure: a weather-resistant colored coating on the front and a primer or backer coating on the reverse. Common front-side coating types include Polyester (PE), Silicone-Modified Polyester (SMP), and PVDF.
Residential gutter projects often utilize high-durability polyester or SMP coatings, typically with a dry film thickness of 20–25 μm. For environments characterized by high UV exposure, high temperatures, or coastal/high-salinity conditions, PVDF coating systems are recommended, typically with a total dry film thickness of 25–30 μm. Coatings must exhibit excellent adhesion, flexibility, impact resistance, resistance to heat and humidity, and chalking resistance to ensure the material does not crack, lose paint, or show significant color variation during roll forming, bending, transport, and installation.
Black surfaces absorb heat significantly; therefore, in high-sunlight regions—such as the southern United States, northern Mexico, Arizona, and Texas—particular attention should be paid to the coating's gloss and color retention capabilities. Quality control for high-grade prepainted black aluminum coils typically involves testing parameters such as cross-hatch adhesion, T-bend flexibility, pencil hardness, solvent rub resistance, and resistance to heat/humidity and salt spray. For deep black or matte black products, it is recommended to clearly specify the gloss range, color difference standards, and color references (such as RAL, Pantone, or customer-approved samples) in the order.
In the Canadian provinces of Ontario and Quebec, black 0.027-inch aluminum gutter coils are frequently used for single-family and townhouse projects. Given the local winter snow accumulation and frequent freeze-thaw cycles, the combination of 6-inch K-style gutters and 3×4-inch downspouts is common. Black pre-painted aluminum coils coordinate well with dark gray roofing shingles, black fascia boards, and stone facades, balancing drainage efficiency with architectural aesthetics.
The Pacific Northwest region of the United States experiences heavy rainfall, necessitating robust drainage systems for residential roofing. Local installers often use 0.027-inch or 0.032-inch black aluminum coils, roll-forming them into continuous gutters on-site to minimize the number of joints found in traditional sectional gutters. In neighborhoods with abundant trees, black gutters are often paired with leaf guard systems; they are suitable for wood-frame homes, villas with pitched roofs, and small commercial buildings.
In Northern Mexico and the Southwestern United States, black and dark bronze gutters are commonly used for modern-style villas, vacation homes, and light commercial projects. High temperatures, intense UV radiation, and seasonal heavy rains place high demands on coating weatherability; projects tend to favor SMP or PVDF pre-painting systems, with strict acceptance criteria regarding coil flatness, coating integrity at bends, and color consistency.
The quality control for black aluminum gutter coils covers aluminum substrate thickness, width tolerances, coating thickness, color, gloss, edge quality, flatness, and packaging. Maintaining excellent flatness and edge quality helps minimize issues such as tracking deviations, indentations, coating cracks, and forming ripples. For export, we utilize moisture-proof paper, PE film, edge protectors, and steel strapping, securing the coils on seaworthy wooden or steel pallets. Inside the containers, desiccants and moisture-prevention measures are employed—particularly for trans-seasonal shipments—to mitigate the risks of white rust, coating contamination, and edge corrosion caused by condensation.
