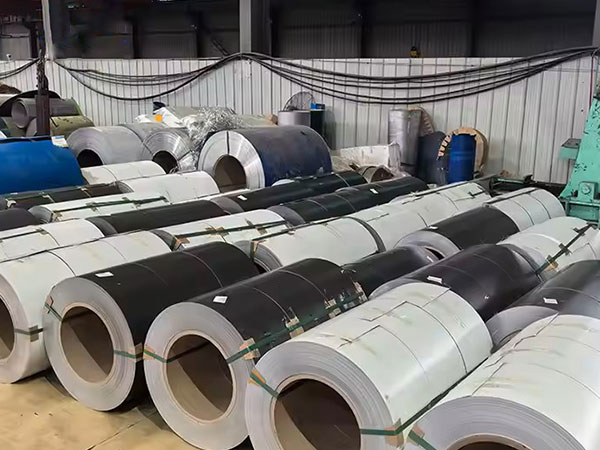

Painted aluminum coils are typically made from high-quality aluminum alloy, and coated with a layer of paint and is rolled into a coil form, which provides strength and flexibility. The same as painted aluminum sheet, they are produced by painting process, include methods like coil coating, where the paint is applied in a continuous process before the aluminum coil is cut into sheets or used directly.
Specification of Painted Aluminum Coil:
Alloy | 1050, 1060, 1070, 1100, 3003, 5052, 5052, 5005, 5006, 5052, 5754, 5182 |
Thickness | 0.2-1.5mm |
Width | 600-1500mm |
Coating Surface | PVDF/ PE/HDP/FEVE/EOXY/ PU |
Coating Thickness | Single Coating (4-20 Um) |
Double Coating (25-28 Um) |
Triple Coating (35-38 Um) |
Temper | O,H12,H22,H14,H24,H16,H26,H18,H26,etc. |
Color | All Ral Color or As Request |
Type | Coil, Sheet, Strips, Plate, Foil |
Coil Weight | 3-8 MT |
Applications | Roofing System and Ceiling Decoration for Airport, Railway Stations, Exhibition Halls, Factory and Stadium |
Supply Ability | 200000 tons per year |
MOQ | 2 tons per size |
Standards and Specifications
ASTM | B209 |
ISO | ISO 26204 (alloy designations), ISO 6892 (mechanical testing),ISO 9001,ISO 14001. |
UNS | A91050 (United States Numbering System) |
Coating Options:
Polyester Coating:
A common choice for outdoor applications due to its durability and resistance to fading.
PVDF (Polyvinylidene Fluoride) Coating:
Offers superior weathering, UV resistance, and a long lifespan, often used for architectural applications.
Warrantly：
Regular PE: 3-5 years；
High Performance PE: 6-9 years；
PVDF: 15 years；
FEVE: Two coats: between 10-15 years；
FEVE: Three coats: 15-20 years.
Technical Data:
Coating | POLYESTER | PVDF |
Item | Technical requirements | Technical requirements |
Thickness of coating film | ≥ 18 µm | ≥ 25µm |
Gloss deviation | gloss<70, tolerance≤10% | gloss<70, tolerance≤10% |
gloss≥70, tolerance≤5% | gloss≥70, tolerance≤5% |
Hardness of pencil | ≥3H | ≥3H |
Adhesion | no lower than class 1 | no lower than class 1 |
Flexibility | ≤2T | ≤2T |
Boiling water resistance | no change (2h) | no change (2h) |
Color difference | ΔE≤2.0 | ΔE≤2.0 |
MEK | ≥100 times | ≥150 times |
Color Options

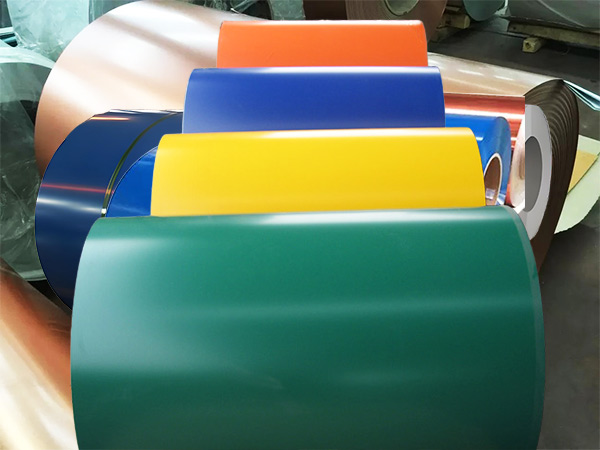

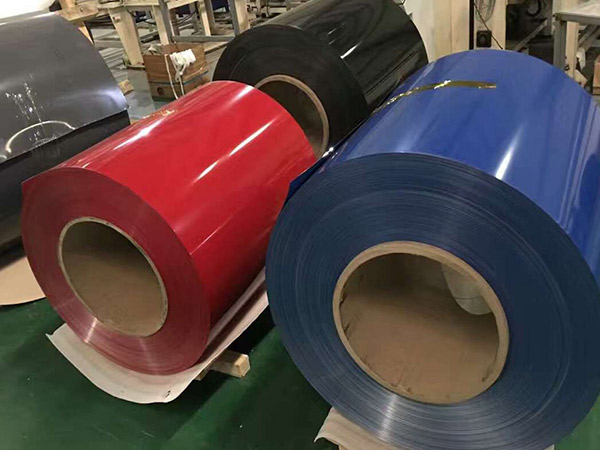

The standard color of painted aluminum coil is modulated according to the Ral color card. The basic colors are red, yellow, blue, green, white, gray and other colors and their derivative colors, which are suitable for most conventional applications.

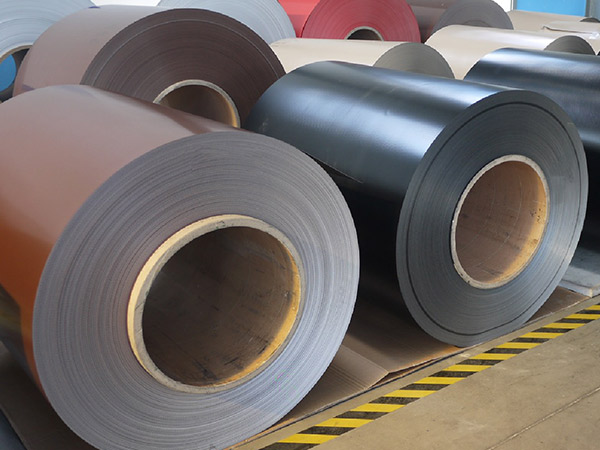

The Metallic color of painted aluminum coil simulate metal textures, such as silver gray, bronze, rose gold, etc., which add a sense of luxury and class to the product and are often used in high-end architectural decoration.

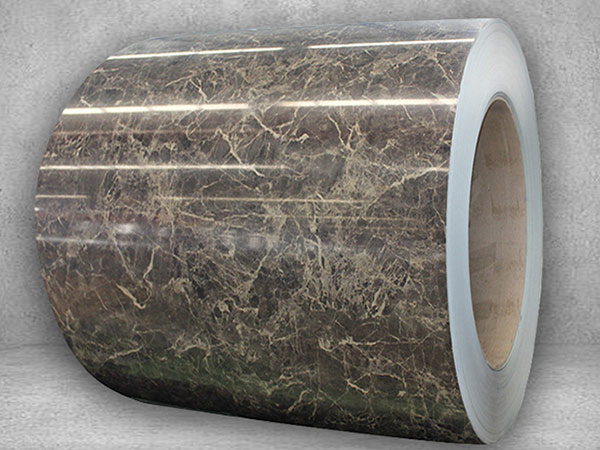

The printing series achieve natural texture effects such as wood grain and stone grain through special coating technology, providing more diversified choices for architectural design, esuitable for places that pursue natural and environmental protection concepts.
1000 Vs 3000 Vs 5000 Series Painted Aluminum Coil
Model | 1000 Series Painted Aluminum Coil | 3000 Series Painted Aluminum Coil | 5000 Series Painted Aluminum Coil |
Main Composition | High-Purity Aluminum (≥99%) | Al-Mn Alloy | Al-Mg Alloy |
Strength | Relatively Low, Easy To Form | Medium Strength, Better Impact Resistance | High Strength, Excellent Tensile Properties |
Corrosion Resistance | Good, Suitable For General Environments | Better, Suitable For Outdoor And Humid Conditions | Excellent, Ideal For Marine And High Salt-Spray Environments |
Workability | Easy To Process, Great Ductility | Good Workability | Good Workability |
Cost | Low-Economical Option | Medium-Good Cost-Performance Ratio | Higher-For Premium Applications |
Typical Applications | Building Decoration, Packaging, Interior Use | Roofing Sheets, Wall Panels, Insulation Boards | Shipbuilding, Marine Projects, Transportation, Industrial Structures |
Surface Finish & Coating Compatibility | • Good Surface Smoothness
• Suitable For Basic PE Coating | • Better Coating Adhesion
• Compatible With PE Coating
• Compatible With PVDF Coating | • Excellent Surface Stability
• Ideal For High-End PVDF Coating
• Suitable For FEVE Coating |
Weather / UV Resistance | • Suitable For Indoor Use
• Suitable For Mild Outdoor Conditions | • Suitable For Long-Term Outdoor Use
• Resistant To Humid Environments | • Excellent For Extreme Climates
• Suitable For Marine Environments
• Resistant To Industrial Pollution |
Service Life | • Short To Medium Term | • Medium To Long Term
• Approx. 10–15 Years | • Long-Lasting Durability
• 20+ Years Of Performance |
Structure of Painted Aluminium Coil:
Process of Coil Coating
Coil coating is a continuous, automated process for coating metal before fabrication into end products. The steel or aluminum substrate is delivered in coil form from the rolling mills. The metal coil is positioned at the beginning of the coating line, and in one continuous process, the coil is unwound, pre-cleaned, pre-treated, pre-primed, and prepainted before being recoiled on the other end and packaged for shipment.
Advantages of Painted Aluminum Coil:
High Durability:
Our painted aluminum coils are corrosion-resistant, ensuring a longer lifespan.
Aesthetic Appeal:
The wide range of colors and finishes enhances the visual appeal of your products.
Environmental Friendly:
Our products are eco-friendly and can be recycled.
Easy Maintenance:
Minimal maintenance is required to keep the painted aluminum coils in top condition.
Customization:
We offer customized solutions to meet specific project requirements.
Applications of Painted Aluminium Coils:
Painted aluminum coil with PVDF coating are for walls and buildings, enhancing their durability against weather conditions and environmental damage.
High-quality aluminum with PVDF coating is ideal for roofing. It offers robust UV resistance, ensuring durability, safety, and strength for outdoor structures.
Painted aluminum coils are perfect for signs and display boards. Their unique finish combines aesthetics with strength, making them stand out.
In modern architecture, painted aluminum coil are commonly used for exterior curtain walls, providing protection while maintaining the building's aesthetic appeal.
Painted aluminum coils are also suitable for interior projects. They are durable and beautifully finished, complementing various home designs.
Painted aluminum coils are excellent for ceiling panels in both residential and commercial buildings, offering a finish that resists soiling and fading.
Lightweight and appealing, painted aluminum coils are ideal for manufacturing furniture for both indoor and outdoor use.
Painted aluminum coils are widely used in electronics and household appliances due to their corrosion resistance, combining functionality with aesthetics.
Packaging:
1) LCL by wooden pallet package, fumigation wooden pallet is available
2) FCL by wooden pallet package loaded in the container
3) FCL in bulk loaded in the container
4) Customized package according to your demands
Shipping:
7-15 days after receipt of payment(depend on order quantity)
