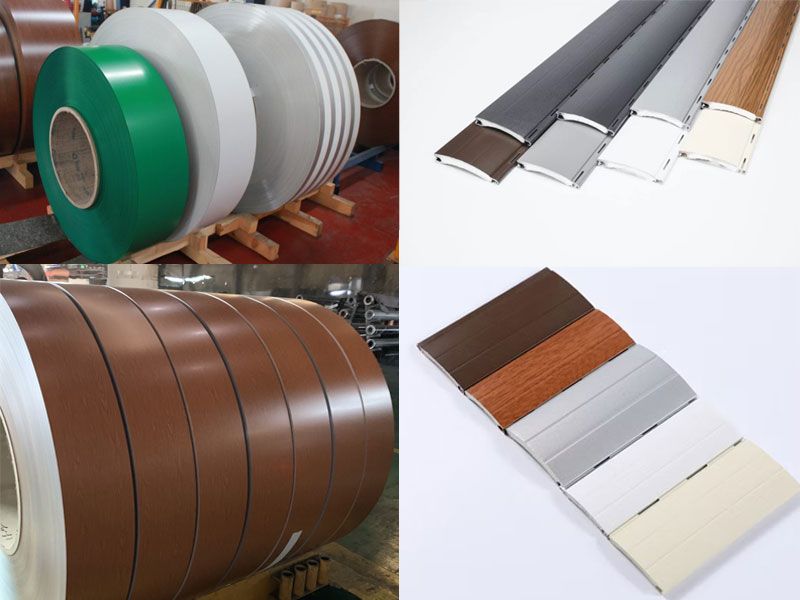

Metal rolling shutters are widely used in commercial storefronts, industrial warehouses, and public parking garages across the North American region. Pre-painted aluminum rolling shutters are increasingly replacing traditional galvanized color-coated steel products due to their combined advantages of light weight, corrosion resistance, and aesthetic appeal. BCM's prepainted aluminum coils for rolling shutters are specifically optimized for North American roll-forming processes, climatic conditions, and industry standards. Serving rolling shutter door manufacturers across the region, these highly reliable coated aluminum materials feature stable substrate performance, consistent coating quality, and precise specifications compatible with mainstream roll-forming production lines.

The primary substrate choice of painted aluminum coil for rolling shutters is the AA3003-H14 aluminum-manganese alloy, a standard in the North American market; for high-strength applications, the AA3105-H14 alloy is available as an upgrade. Material properties fully comply with the ASTM B209 standard. Standard thicknesses cover the three mainstream North American specifications—0.019", 0.024", and 0.032" (metric equivalents: 0.48mm, 0.61mm, and 0.81mm)—with custom thicknesses available upon request. Coil widths are tailored to the requirements of continuous roll-forming lines, with slitting precision controlled to within ±0.2mm. The surface undergoes multi-roll precision leveling, achieving flatness ≤0.3mm/m with no waviness, warping, or roll marks; this ensures uniform interlocking gaps between door slats after forming and smooth, jam-free operation during coiling and uncoiling. Both alloys exhibit excellent cold-bending plasticity and fatigue resistance, capable of withstanding frequent opening, closing, and coiling cycles without undergoing plastic deformation or edge cracking over long-term use.

The coating system of aluminium coil for rolling shutters is optimized in tiers to suit North America's diverse climatic conditions, offering three options: Polyester (PE), High-Durability Polyester (HDP), and PVDF fluorocarbon.

Standard commercial rolling shutter doors feature a PE coating with a dry film thickness of 20–25μm on the front and an anti-corrosive primer on the back; the coating achieves ASTM D3359 Class 4B adhesion, ensuring the paint film neither cracks nor peels after repeated coiling and bending.

For regions with intense UV radiation (such as the southern US) or high heat and humidity (such as Mexico), HDP coatings offer 40% better aging resistance than standard PE, extending outdoor service life to 10–12 years.

For high-salinity coastal areas—including the North American East and West Coasts and the Gulf of Mexico—PVDF fluorocarbon coatings (compliant with AAMA 2605 standards) are recommended, offering an outdoor weatherability lifespan exceeding 15 years.

Stocked colors include popular North American choices such as white, off-white, bronze, and charcoal black. Produced using a fully automated, closed-loop color matching system, the products maintain a color difference of ΔE ≤ 1.0 within the same batch, ensuring visual uniformity across the entire door assembly and a consistent look for large-scale commercial installations.

Drawing on years of experience serving North American clients, BCM recognizes that the core requirements for painted aluminum coils for rolling shutter doors are delivery stability and batch consistency. BCM maintains ready stock of mainstream specifications and popular colors for the North American market, enabling rapid shipment of standard orders and effectively shortening production turnaround times. To meet the demands of the frigid climate in northern Canada, the coating’s low-temperature toughness has been optimized to prevent cracking during bending at -30°C; meanwhile, for Mexico’s industrial zones, the coating’s resistance to industrial exhaust corrosion has been enhanced. Compared to traditional color-coated steel shutters, aluminum shutters are approximately 60% lighter, reducing motor load and transmission losses. They offer more than double the overall service life, are permanently rust-proof, require no periodic repainting, and provide significant cost advantages over their entire lifecycle.

From commercial retail storefronts to industrial warehouse entrances, and from the cold regions of Canada to the Gulf of Mexico coast, BCM's prepainted aluminum coils for rolling shutters deliver cost-effective solutions to North American manufacturers through precise market alignment, stable quality performance, and efficient delivery services.
