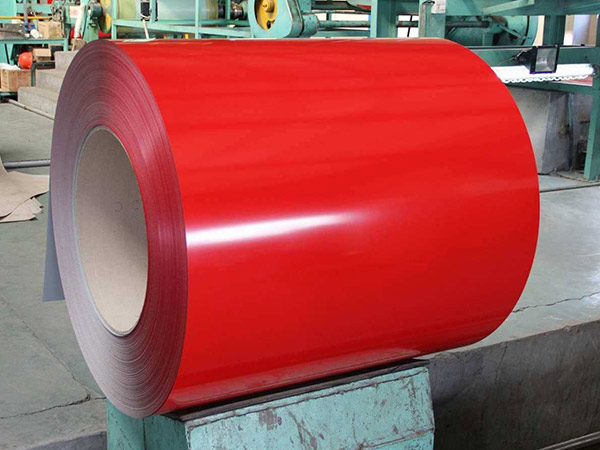

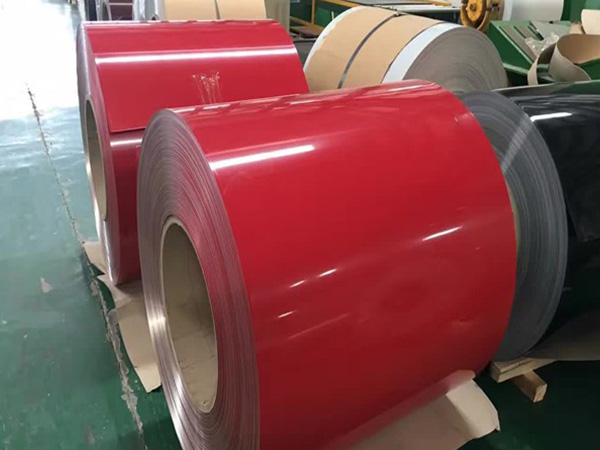

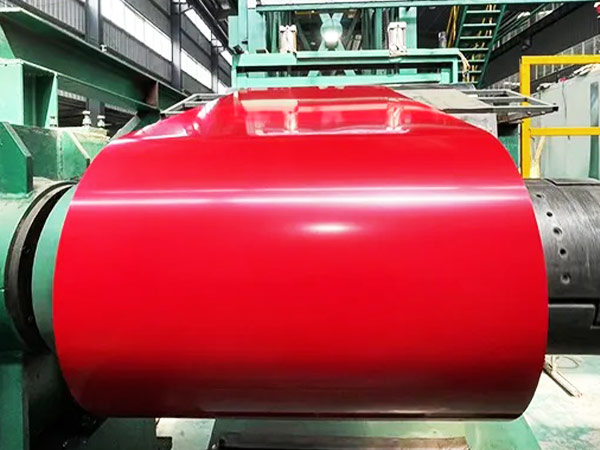

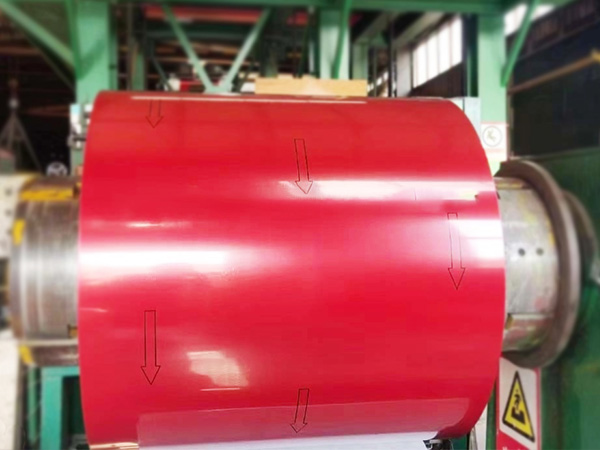

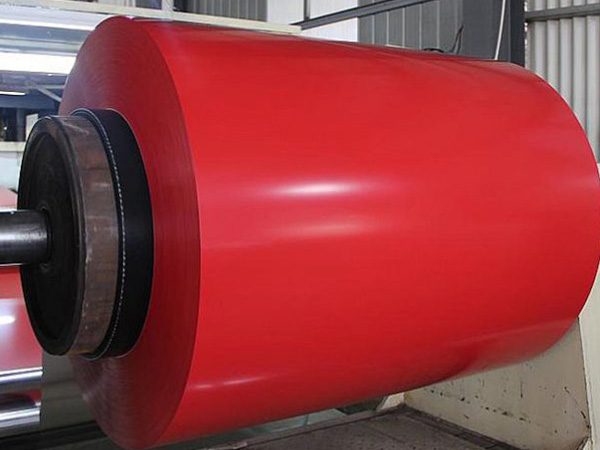

3003 color coated aluminum coil is a high-quality material that has been specifically designed for various applications. With its excellent strength and durability, this coil is ideal for use in industries such as construction, signage, and automotive. It comes in a wide range of colors and finishes, making it a versatile choice for any project.
Alloy | 1050, 1060, 1070, 1100, 3003, 3004, 3105, 5005, 5006, 5052, 5754, 5182 |
Thickness | 0.2-1.5mm |
Width | 600-1500mm |
Coating Surface | PVDF/ PE/HDPE/FEVE/EOXY/ PU |
Coating Thickness | Single Coating (4-20 Um) |
Double Coating (25-28 Um) | |
Triple Coating (35-38 Um) | |
Temper | O,H12,H22,H14,H24,H16,H26,H18,H26,etc. |
Color | All Ral Color or As Request |
Type | Coil, sheet, strips, plate |
Coil Weight | 3-8 MT |
Coil ID | 508mm and 405mm |
Certifications | ISO9001 |
Applications | Roofing System and Ceiling Decoration for Airport, Railway Stations, Exhibition Halls, Factory and Stadium |
Supply Ability | 200000 tons per year |
MOQ | 2 tons per size |
Coating Options:
- Polyester Coating: A common choice for outdoor applications due to its durability and resistance to fading.
- PVDF (Polyvinylidene Fluoride) Coating: Offers superior weathering, UV resistance, and a long lifespan, often used for architectural applications.
Warrantly：
Regular PE: 3-5 years；
High Performance PE: 6-9 years；
PVDF: 15 years；
FEVE: Two coats: between 10-15 years；
FEVE: Three coats: 15-20 years.
Technical Data:
Coating | POLYESTER | PVDF |
Item | Technical requirements | Technical requirements |
Thickness of coating film | ≥ 18 µm | ≥ 25µm |
Gloss deviation | gloss<70, tolerance≤10% | gloss<70, tolerance≤10% |
gloss≥70, tolerance≤5% | gloss≥70, tolerance≤5% | |
Hardness of pencil | ≥3H | ≥3H |
Adhesion | no lower than class 1 | no lower than class 1 |
Flexibility | ≤2T | ≤2T |
Boiling water resistance | no change (2h) | no change (2h) |
Color difference | ΔE≤2.0 | ΔE≤2.0 |
MEK | ≥100 times | ≥150 times |
Chemical Composition
Element | Aluminum (Al) | Manganese(Mn) | Silicon (Si) | Iron (Fe) | Cooper(Cu) | Zinc(Zn) | Other Elements | Total Impurities |
Content (%) | 97.0-98.5 | 1.0-1.5 | ≤0.6 | ≤0.05 | ≤0.05 | ≤0.1 | ≤0.05 | ≤0.35 |
Mechanical Properties
Property | Typical Value (Temper: O) | Typical Value | Typical Value | Typical Value | Typical Value |
Tensile Strength | 90-140 MPa | 140-185 Mpa | 165-205Mpa | 185-225Mpa | ≥215Mpa |
Yield Strength (0.2% offset) | ≤55 MPa | 110-145 MPa | 135-170 MPa | 160-195 MPa | ≥185Mpa |
Elongation at Break | 20-25% | 8-12% | 6-10% | 4-8% | 3-6% |
Hardness (Rockwell B) | 35-45HB | 35-45HB | 45-65HB | 55-75HB | 65-85HB |
Physical Properties
Property | Density | Melting Point | Thermal Conductivity | Electrical Conductivity | Thermal Expansion Coefficient |
Value | 2.7 g/cm³ | 643–657°C | 209 W/m·K | 61% IACS | 23.1×10⁻⁶/°C (20–100°C) |
Standards and Specifications
ASTM | B209 |
ISO | ISO 26204 (alloy designations), ISO 6892 (mechanical testing),ISO 9001,ISO 14001. |
UNS | A91050 (United States Numbering System) |
- Corrosion Resistance:
The aluminum alloy 3003 is known for its excellent corrosion resistance, making it suitable for outdoor applications and environments with high humidity.
- Lightweight:
Aluminum is significantly lighter than other metals like steel, which can reduce transportation costs and make handling easier during installation.
- Aesthetic Appeal:
The color coating provides a wide range of color options and finishes, allowing for customization and enhancing the visual appeal of buildings, vehicles, and other products.
- Durability:
The color coating adds an extra layer of protection to the aluminum, increasing its durability and lifespan. It can withstand harsh weather conditions without fading or chipping.
- Formability:
3003 aluminum is known for its good workability, allowing it to be easily formed into various shapes and sizes for different applications.
- Environmental Friendliness:
100% recyclable with minimal energy loss, aligning with sustainability goals.
Due to its favorable properties and versatile application potentials, 3003 prepainted aluminum coil finds favor across various industries:
- Architectural Facades:
Many modern buildings incorporate 3003 aluminum coils for decorative and functional facade cladding due to their durability and design flexibility.
- Interior Design Elements:
From ceiling tiles to wall panels, the attractive finishes complement many interior styles, offering aesthetic advantages.
- Transportation:
In elements of road vehicles, from bodywork to trailers, the lightweight characteristics contribute to fuel efficiency without sacrificing structural integrity.
- Consumer Products:
Items like signboards, appliances, and furniture often utilize 3003 coated aluminum coil for its combination of form, function and finish.
- High-Volume Production
With an annual output of 200,000 metric tons, we reliably meet the demands of large-scale projects and tight timelines.
- Global Reach, Local Presence
Our products serve clients in over 30 countries, supported by local inventory for faster delivery and support.
- Certified Quality
Our quality management system and products are certified to ISO 9001, ASTM, and CSA standards, ensuring guaranteed performance.
- Technical Expertise
Our engineering team provides expert material selection and application support to ensure optimal performance for your specific requirements.
- Full Customization
We offer complete customization of colors, finishes, and dimensions to meet exact architectural specifications.
1) LCL by wooden pallet package, fumigation wooden pallet is available
2) FCL by wooden pallet package loaded in the container
3) FCL in bulk loaded in the container
4) Customized package according to your demands
Shipping:
7-15 days after receipt of payment(depend on order quantity)
Q1. What is the minimum order quantity?
500Sqm for one color with 1220 mm*2440 mm size.
Q2. What is your terms of payment?
T/T 30% deposit in advance; the balance paid should be paid according to the copy of B/L.
Q3. How about your delivery time?
Generally, it will take 15 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings.
Q5: Do you have stock available in Canada?
A: Yes. We maintain strategic inventory of popular products in our Ontario warehouse for faster delivery across North America.
Q6. Why can I trust you and place order with you?
1. We are manufacture and supplier of coated aluminum sheet coil in Canada with over 10 years' experience.
2. We keep fastest delivery. Since we have perfect production equipment.
