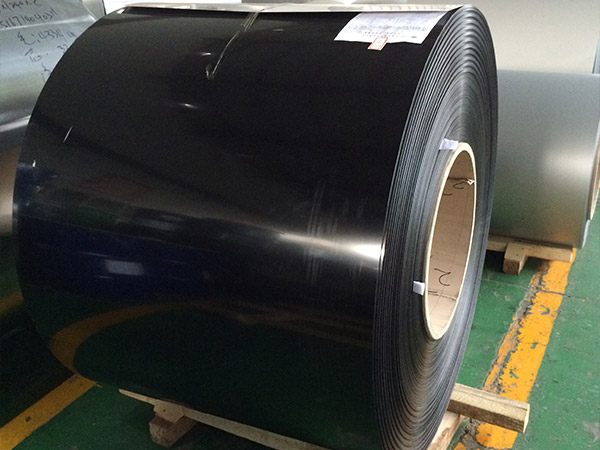

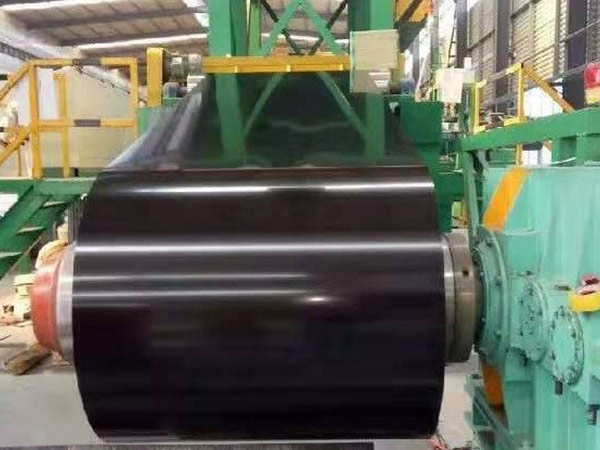

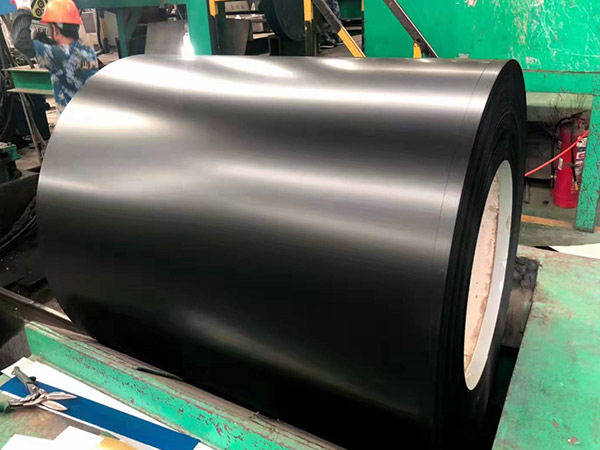

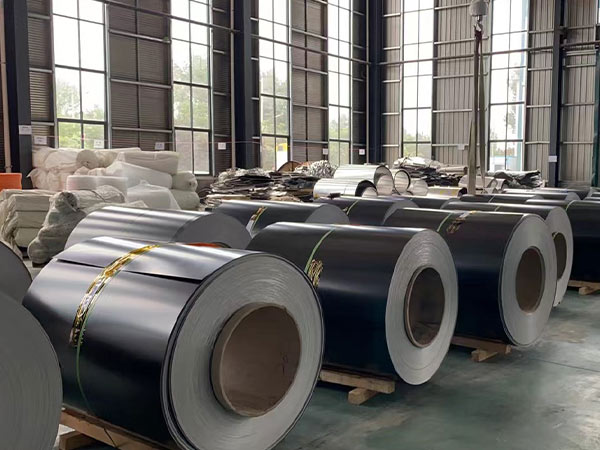

3004 prepainted aluminum coil, an Al-Mg-Mn alloy, is 3000 series aluminum product known for its strength, durability and aesthetic appeal. 3004 color coated aluminum coil has a high tensile strength, good corrosion resistance, and is easy to work with. Its surface has a beautiful, long-lasting color that's resistant to fading, making it a popular choice for construction, and its eco-friendliness adds to its appeal. 3004 coated aluminum coil is suitable for parts that require higher strength than 3003 coated aluminum coil, and has good formability, welding and corrosion resistance.
Alloy | 1050, 1060, 1070, 1100, 3003, 3004, 3105, 5005, 5006, 5052, 5754, 5182 |
Thickness | 0.2-1.5mm |
Width | 600-1500mm |
Coating Surface | PVDF/ PE/HDPE/FEVE/EOXY/ PU |
Coating Thickness | Single Coating (4-20 Um) |
Double Coating (25-28 Um) | |
Triple Coating (35-38 Um) | |
Temper | O,H12,H22,H14,H24,H16,H26,H18,H26,etc. |
Color | All Ral Color or As Request |
Type | Coil, sheet, strips, plate |
Coil Weight | 3-8 MT |
Coil ID | 508mm and 405mm |
Certifications | ISO9001 |
Applications | Roofing System and Ceiling Decoration for Airport, Railway Stations, Exhibition Halls, Factory and Stadium |
Supply Ability | 200000 tons per year |
MOQ | 2 tons per size |
Coating Options:
- Polyester Coating: A common choice for outdoor applications due to its durability and resistance to fading.
- PVDF (Polyvinylidene Fluoride) Coating: Offers superior weathering, UV resistance, and a long lifespan, often used for architectural applications.
Warrantly：
Regular PE: 3-5 years；
High Performance PE: 6-9 years；
PVDF: 15 years；
FEVE: Two coats: between 10-15 years；
FEVE: Three coats: 15-20 years.
Technical Data:
Coating | POLYESTER | PVDF |
Item | Technical requirements | Technical requirements |
Thickness of coating film | ≥ 18 µm | ≥ 25µm |
Gloss deviation | gloss<70, tolerance≤10% | gloss<70, tolerance≤10% |
gloss≥70, tolerance≤5% | gloss≥70, tolerance≤5% | |
Hardness of pencil | ≥3H | ≥3H |
Adhesion | no lower than class 1 | no lower than class 1 |
Flexibility | ≤2T | ≤2T |
Boiling water resistance | no change (2h) | no change (2h) |
Color difference | ΔE≤2.0 | ΔE≤2.0 |
MEK | ≥100 times | ≥150 times |
Chemical Composition:
Element | Aluminum (Al) | Manganese(Mn) | Mg | Silicon (Si) | Iron (Fe) | Cooper(Cu) | Zinc(Zn) | Other Elements | Total Impurities |
Content (%) | 97.0-98.5 | 1.0-1.5 | 0.8-1.3 | ≤0.3 | ≤0.7 | ≤0.25 | ≤0.25 | ≤0.05 | ≤0.15 |
Mechanical Properties:
Tensile Strength: Typically ranges from 185-300 MPa, providing a good balance of strength and ductility.
Yield Strength: Approximately 150 MPa, which is higher than that of the 3003 alloy, giving it better formability.
Elongation: The alloy has good elongation properties, making it easy to form into various shapes without cracking.
Exceptional Durability: High-performance PVDF coating resists fading, chalking, and corrosion for decades, even in harsh weather.
Wide Range of Aesthetics: Available in a vast spectrum of standard and custom colors and finishes (metallic, matte, woodgrain) for any design.
Proven Compliance: Manufactured to meet key North American standards (ASTM, CSA, AAMA 2605) for guaranteed performance.
Lightweight & Strong: Provides structural integrity while being easy to handle and install, reducing overall costs.
Low Maintenance & Long-Lasting: Stands up to the elements, requiring minimal upkeep over its long service life.
- Construction: Commonly used for roofing, wall cladding, and facade systems in both residential and commercial buildings.
- Automotive: Utilized in vehicle interiors, exteriors, and components due to their lightweight and corrosion-resistant properties.
- Appliances: Found in household appliances such as refrigerators, ovens, and washing machines.
- Signage: Ideal for producing vibrant and durable outdoor and indoor signs.
- Furniture: Used in modern furniture designs for tables, cabinets, and shelving.
- Packaging: Employed in packaging applications, particularly in food and beverage industries.
1) LCL by wooden pallet package, fumigation wooden pallet is available
2) FCL by wooden pallet package loaded in the container
3) FCL in bulk loaded in the container
4) Customized package according to your demands
Shipping:
7-15 days after receipt of payment(depend on order quantity)
- High-Volume Production
With an annual output of 200,000 metric tons, we reliably meet the demands of large-scale projects and tight timelines.
- Global Reach, Local Presence
Our products serve clients in over 30 countries, supported by local inventory for faster delivery and support.
- Certified Quality
Our quality management system and products are certified to ISO 9001, ASTM, and CSA standards, ensuring guaranteed performance.
- Technical Expertise
Our engineering team provides expert material selection and application support to ensure optimal performance for your specific requirements.
- Full Customization
We offer complete customization of colors, finishes, and dimensions to meet exact architectural specifications.
Q1. What is the minimum order quantity?
500Sqm for one color with 1220 mm*2440 mm size.
Q2. What is your terms of payment?
T/T 30% deposit in advance; the balance paid should be paid according to the copy of B/L.
Q3. How about your delivery time?
Generally, it will take 15 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings.
Q5: Do you have stock available in Canada?
A: Yes. We maintain strategic inventory of popular products in our Ontario warehouse for faster delivery across North America.
Q6. Why can I trust you and place order with you?
1. We are manufacture and supplier of coated aluminum sheet coil in Canada with over 10 years' experience.
2. We keep fastest delivery. Since we have perfect production equipment.
