In today's construction and manufacturing industries, coated aluminum sheets are highly favored for their superior performance and broad application prospects. PPG PVDF coated aluminum sheets are among the best, becoming the preferred material for numerous construction projects and decoration works due to their excellent weather resistance and superior aesthetics. In the industrial and building curtain wall sectors, the core performance of coated aluminum sheets has always focused on coating adhesion and weather resistance stability, and the combination of PPG PVDF coating and aluminum alloy substrates is an optimized solution based on this core requirement. As a company deeply involved in the manufacturing and export of coated aluminum sheets, we BCM Alu have comprehensive technical control and customized solutions throughout the entire process, from substrate selection to coating curing. This allows us to provide precise parameter matching and customized formulas for different working conditions, ensuring long-term product stability and reliability.

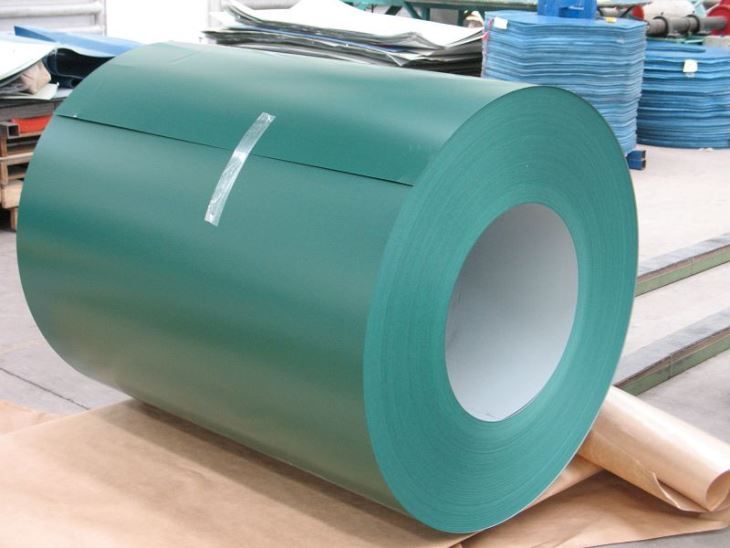

In terms of specifications, the substrate of PPG PVDF coated aluminum sheet uses 1060 and 3003 series aluminum alloy plates, with a thickness range of 0.8-4.0mm, standard widths of 1220mm and 1500mm, and lengths that can be customized according to project requirements (up to 6000mm). This specification range takes into account both the structural load-bearing requirements of building curtain walls and the lightweight requirements of industrial equipment shells. It is worth noting that the pretreatment process of the substrate surface is crucial. Our chromate passivation + nano-ceramic conversion film treatment can control the surface roughness of the substrate to Ra 0.3-0.5μm. This parameter is key to ensuring coating adhesion—actual tests show that the tensile strength between the pretreated substrate and the PPG PVDF coating can reach over 3.5MPa, far exceeding the industry standard requirement of 2.5MPa. Regarding coating thickness, the composite structure of an 8-12μm primer thickness and a 25-35μm topcoat thickness is the optimal ratio verified through hundreds of weather resistance tests. This ensures both excellent coverage and prevents cracking due to thermal expansion and contraction caused by excessive coating thickness.

The core advantages of the PPG PVDF coating stem from its unique molecular structure and formulation design, specifically in the following aspects:

- Excellent weather resistance:

The coating contains ≥70% fluorine, and the strong stability of the fluorocarbon covalent bonds allows it to adapt to extreme climates. Actual testing shows that in the frigid conditions of northern Canada (-40℃) and the hot, humid environments of the tropics, after 15 years of outdoor exposure, the color difference ΔE ≤1.5, gloss retention ≥80%, and a service life far exceeding the 5-year standard for polyester coatings.

- Superior corrosion resistance:

Effectively resists sulfur dioxide and nitrogen oxides in industrial atmospheres, as well as salt spray corrosion in marine environments. After 10,000 hours of neutral salt spray testing, the coating showed no blistering or peeling, making it suitable for harsh corrosive conditions such as chemical and marine environments.

- Excellent self-cleaning performance:

With a surface contact angle ≥105°, dust is difficult to adhere to, and daily rainwater can clean the surface, significantly reducing the later maintenance costs of building curtain walls and outdoor equipment.

- Stable bonding:

Utilizing a high-temperature curing process of 230±5℃ for 20 minutes, it forms a stable chemical bond with the aluminum alloy substrate, avoiding the problem of easy peeling caused by the physical adhesion of conventional coatings, ensuring long-term reliability.

Leveraging its high-performance advantages, PPG PVDF coated aluminum sheets are widely applicable to various high-end building and industrial applications, specifically categorized as follows:

- High-end building sector:

Suitable for curved curtain walls of commercial complexes, airport terminal roof systems, office building exteriors, etc. Its excellent weather resistance can cope with different regional climates, balancing aesthetics and long-term stability, making it a preferred material for landmark buildings.

- Industrial equipment sector:

Suitable for chemical equipment housings, new energy battery storage compartments, precision instrument enclosures, etc. Its chemical corrosion resistance and insulation properties ensure long-term stable operation of equipment under harsh conditions, reducing the risk of failure.

- Customized industrial scenarios:

Formulas can be customized to specific operating conditions. For example, our customized anti-corrosion coated aluminum sheets for a North American chemical company, after adding specialized anti-corrosion additives, showed no corrosion after two years of use, and equipment operational stability improved by 40%.

- Rail transit:

Used in the exterior components of rail transit vehicles, its lightweight properties reduce vehicle energy consumption, while its impact resistance and weather resistance ensure aesthetic durability, adapting to high-frequency outdoor operating environments.

As a professional PPG PVDF coated aluminum sheet manufacturer , I deeply understand the importance of choosing the right materials for project success. PPG PVDF coated aluminum sheets, with their excellent performance and diverse applications, are an important choice to meet the needs of modern construction. Whether you prioritize aesthetics, durability, or sustainable development in your project, PPG PVDF coated aluminum sheets offer an ideal solution.
