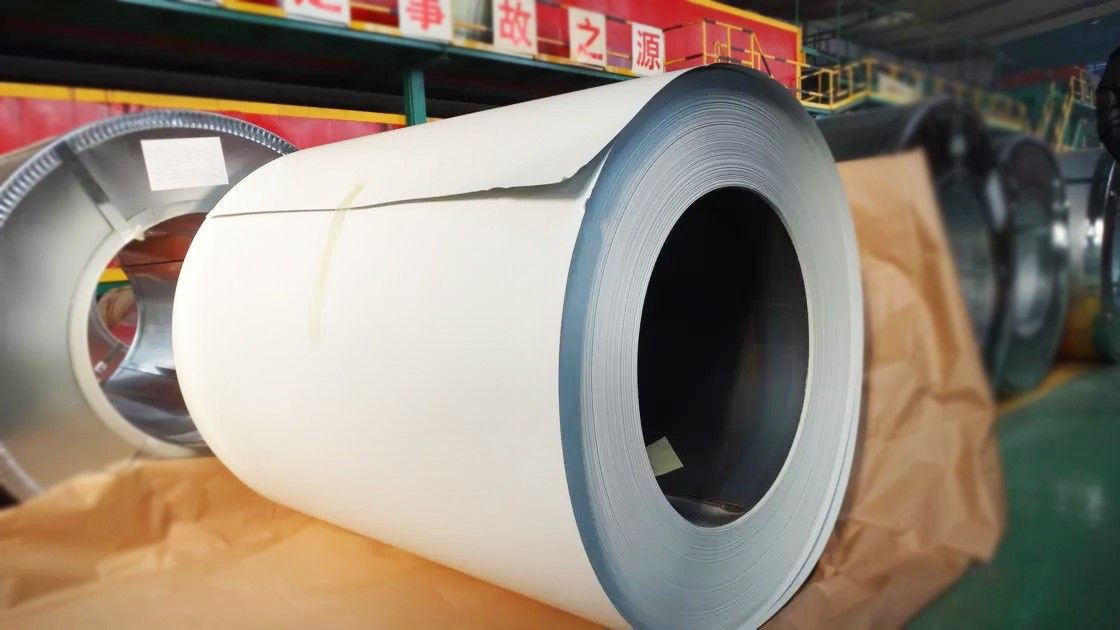

As someone with years of experience in the manufacturing and export of painted aluminum sheets, I firmly believe that the value of a material is ultimately demonstrated through practical application. The fact that 3105 H14 painted aluminum sheet has become one of our core products in export orders to the North American market is no accident—its unique alloy composition and H14 temper processing technology endow it with balanced mechanical properties and excellent weather resistance, precisely matching the stringent requirements of multiple industries in North America. Next, I will discuss the wide range of applications of 3105 h14 painted aluminum sheet by industry, based on my production and supply experience in the North American market and local case studies.

1. Construction Sector

Let's start with the basic construction sector, which is also one of the core application scenarios for 3105 H14 painted aluminum sheets. Unlike ordinary aluminum sheets, 3105 alloy is mainly composed of aluminum and magnesium, with a magnesium content consistently between 1.0% and 1.5%. Combined with H14 cold work hardening treatment, its tensile strength can reach 150-190 MPa, and its yield strength ≥130 MPa. This strength is sufficient to support its use as a core material for building envelopes. In North America, we have supplied 3105 H14 painted aluminum panels for roofing and wall cladding systems in several projects, including a light industrial park in Washington State, USA, and an agricultural warehousing center in Ontario, Canada. Addressing the rainy, snowy, and high-UV climate of North America, we utilize a highly weather-resistant PVDF fluorocarbon coating. The coating thickness is strictly controlled at 25-30μm. After six years of outdoor exposure testing in Florida, the coating retains over 85% of its gloss, with no significant fading, chalking, or cracking. Crucially, its density is only 2.71g/cm³, 35% lighter than steel, with a weight of only 2.5-3.2kg per square meter, significantly reducing the structural load. Combined with the mainstream North American interlocking installation process, rapid assembly is possible, increasing construction efficiency by over 40% compared to traditional steel materials, perfectly meeting the North American construction industry's core demands for timely completion and long-term durability.

2. Transportation Sector

Applications in the transportation sector further highlight the precise suitability of this material. In North America's booming logistics and shipping industries, the lightweight and corrosion-resistant advantages of 3105H14 color-coated aluminum sheets are fully realized. We have customized 3105 painted aluminum sheets specifically for refrigerated truck bodies for a well-known North American cold chain logistics company. The client's core requirements were to meet the "lightweight + low-temperature resistance + corrosion resistance" requirements of long-haul cold chain transportation in North America. 3105 H14 aluminum sheets maintain stable impact toughness and no risk of cracking even at -40°C (commonly low temperatures in northern North America during winter). The double-layer coating system of polyester primer and fluorocarbon topcoat shows no rust after 480 hours of ASTM B117 salt spray testing, effectively resisting condensation from temperature differences inside and outside the truck body and corrosion from cold chain goods (such as seafood and frozen foods). Practical application data shows that using this material reduces the weight of refrigerated truck compartments by 12% and fuel consumption by 1.2L per 100km. Based on the average annual mileage of 150,000km for refrigerated trucks in North America, this translates to an annual fuel cost saving of approximately $1,800 per truck.

3. Electronics and Appliances

Regarding appliance casings, we supply 3105 H14 painted aluminum sheets for washing machine side panels and refrigerator back panels to North American appliance brands. Addressing the large-size, high-precision assembly requirements of North American appliances, we control the flatness deviation of the sheet to ≤0.5mm/m to ensure subsequent stamping precision. The coating uses a scratch-resistant polyester system with a hardness of 4H, capable of withstanding minor impacts during appliance production, transportation, and daily use, meeting the appearance quality standards of the North American appliance industry.

4. Packaging

In the packaging sector, its food-grade properties precisely match the demands of the high-end consumer goods market in North America. Some clients use it for metal packaging cans for high-end coffee beans and handmade chocolates. By optimizing the coating formulation, we ensure our products meet FDA food contact safety standards and achieve ASTM D3359 Level 1 printing adhesion, clearly displaying brand logos and product information, helping clients enhance their product's premium value.

Based on years of export experience, the widespread application of 3105 H14 painted aluminum sheet is essentially a victory of its "performance balance"—it doesn't possess extreme high strength, yet it meets the basic needs of most industries; it doesn't have extreme corrosion resistance, but its coating optimization allows it to adapt to different environments. For potential customers, choosing this material means finding the optimal balance between cost, performance, and service life. Whether it's builders seeking long-term weather resistance or manufacturers prioritizing lightweight and formability, 3105 H14 painted aluminum sheet provides a verifiable solution, which is the fundamental reason why it consistently holds a core position among our export products.
