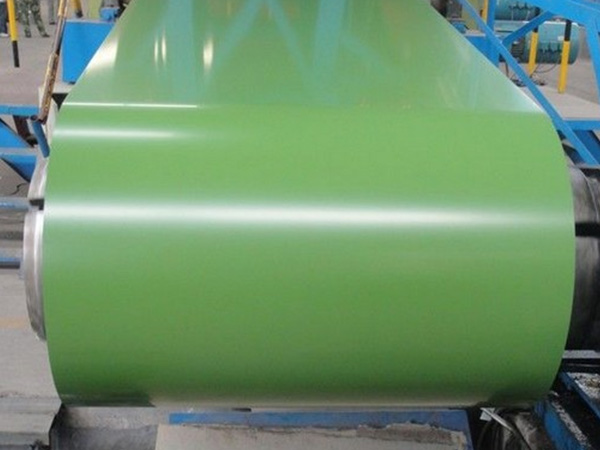

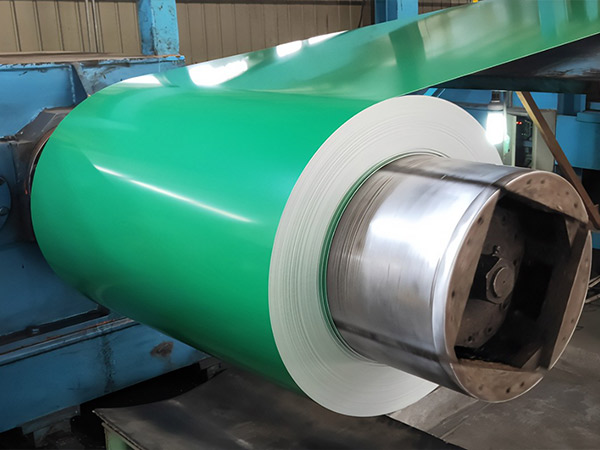

3105 painted aluminum sheets are designed to provide a rugged, abrasive resistant coating and enhanced flexibility for extensive forming and fabricating. High-quality pre-painted aluminum sheet is often used in various applications, including construction, automotive, and manufacturing, due to its excellent corrosion resistance, good formability and welding performance, lightweight properties, and aesthetic appeal.
Alloy | 1050, 1060, 1070, 1100, 3003, 3105, 3105, 5005, 5006, 5052, 5754, 5182 |
Thickness | 0.2-1.5mm |
Width | 600-1500mm |
Coating Surface | PVDF/ PE/HDPE/FEVE/EOXY/ PU |
Coating Thickness | Single Coating (4-20 Um) |
Double Coating (25-28 Um) | |
Triple Coating (35-38 Um) | |
Temper | O,H12,H22,H14,H24,H16,H26,H18,H26,etc. |
Color | All Ral Color or As Request |
Type | Coil, sheet, strips, plate |
Coil Weight | 3-8 MT |
Coil ID | 508mm and 405mm |
Certifications | ISO9001 |
Applications | Roofing System and Ceiling Decoration for Airport, Railway Stations, Exhibition Halls, Factory and Stadium |
Supply Ability | 200000 tons per year |
MOQ | 2 tons per size |
Coating Options:
- Polyester Coating: A common choice for outdoor applications due to its durability and resistance to fading.
- PVDF (Polyvinylidene Fluoride) Coating: Offers superior weathering, UV resistance, and a long lifespan, often used for architectural applications.
Warrantly：
Regular PE: 3-5 years；
High Performance PE: 6-9 years；
PVDF: 15 years；
FEVE: Two coats: between 10-15 years；
FEVE: Three coats: 15-20 years.
Technical Data:
Coating | POLYESTER | PVDF |
Item | Technical requirements | Technical requirements |
Thickness of coating film | ≥ 18 µm | ≥ 25µm |
Gloss deviation | gloss<70, tolerance≤10% | gloss<70, tolerance≤10% |
gloss≥70, tolerance≤5% | gloss≥70, tolerance≤5% | |
Hardness of pencil | ≥3H | ≥3H |
Adhesion | no lower than class 1 | no lower than class 1 |
Flexibility | ≤2T | ≤2T |
Boiling water resistance | no change (2h) | no change (2h) |
Color difference | ΔE≤2.0 | ΔE≤2.0 |
MEK | ≥100 times | ≥150 times |
Chemical Composition
Element | Aluminum (Al) | Manganese(Mn) | Silicon (Si) | Iron (Fe) | Cooper(Cu) | Zinc(Zn) | Other Elements | Total Impurities |
Content (%) | 97.5 | 0.6-1.0 | ≤0.6 | ≤0.7 | 0.1-0.4 | ≤0.25 | ≤0.05 | ≤0.15 |
Mechanical Properties
Property | (Temper: O) | (H12) | (H14) | (H16) | (H18) | (H22) | (H24) | (H26) | (H28) |
Tensile Strength | 95-130 MPa | 130-165 Mpa | 145-185Mpa | 170-210Mpa | 195-230Mpa | 130-165 Mpa | 145-185Mpa | 170-210Mpa | 195-230Mpa |
Yield Strength (0.2% offset) | 35-60 MPa | 110-145 MPa | 125-165 MPa | 150-190 MPa | 175-210 MPa | 100-135 MPa | 115-155 MPa | 140-180 MPa | 165-205MPa |
Elongation at Break | 18-22% | 8-12% | 6-10% | 4-8% | 3-6% | 8-12% | 6-10% | 4-8% | 3-6% |
Hardness (Rockwell B) | 30-40HB | 40-50HB | 45-55HB | 55-75HB | 60-70HB | 40-50HB | 45-55HB | 55-75HB | 60-70HB |
Physical Properties
Property | Density | Melting Point | Thermal Conductivity | Electrical Conductivity | Thermal Expansion Coefficient |
Value | 2.7 g/cm³ | 643–657°C | 209 W/m·K | 61% IACS | 23.1×10⁻⁶/°C (20–100°C) |
ASTM | B209 |
ISO | ISO 26204 (alloy designations), ISO 6892 (mechanical testing),ISO 9001,ISO 14001. |
UNS | A91050 (United States Numbering System) |
- High Durability: Our prepainted aluminum coils are corrosion-resistant, ensuring a longer lifespan.
- Aesthetic Appeal: The wide range of colors and finishes enhances the visual appeal of your products.
- Environmental Friendly: Our products are eco-friendly and can be recycled.
- Easy Maintenance: Minimal maintenance is required to keep the coils in top condition.
- Customization: We offer customized solutions to meet specific project requirements.
- Building and Construction:
Used for siding, roofing, and other architectural applications due to its aesthetic appeal and durability.
- Mobile Homes:
Commonly used in the construction of mobile homes and recreational vehicles (RVs) for its lightweight and corrosion-resistant properties.
- Household Appliances:
Often used in the manufacture of appliances like refrigerators and air conditioning units, where a painted finish is desirable.
- Signage:
The painted finish allows for vibrant colors and designs, making it suitable for signage and display applications.
- Automotive:
Used in various automotive components and trim due to its lightweight properties and resistance to corrosion.
1) LCL by wooden pallet package, fumigation wooden pallet is available
2) FCL by wooden pallet package loaded in the container
3) FCL in bulk loaded in the container
4) Customized package according to your demands
Shipping:
7-15 days after receipt of payment(depend on order quantity)
- High-Volume Production
With an annual output of 200,000 metric tons, we reliably meet the demands of large-scale projects and tight timelines.
- Global Reach, Local Presence
Our products serve clients in over 30 countries, supported by local inventory for faster delivery and support.
- Certified Quality
Our quality management system and products are certified to ISO 9001, ASTM, and CSA standards, ensuring guaranteed performance.
- Technical Expertise
Our engineering team provides expert material selection and application support to ensure optimal performance for your specific requirements.
- Full Customization
We offer complete customization of colors, finishes, and dimensions to meet exact architectural specifications.
Q1. What is the minimum order quantity?
500Sqm for one color with 1220 mm*2440 mm size.
Q2. What is your terms of payment?
T/T 30% deposit in advance; the balance paid should be paid according to the copy of B/L.
Q3. How about your delivery time?
Generally, it will take 15 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings.
Q5: Do you have stock available in Canada?
A: Yes. We maintain strategic inventory of popular products in our Ontario warehouse for faster delivery across North America.
Q6. Why can I trust you and place order with you?
1. We are manufacture and supplier of coated aluminum sheet coil in Canada with over 10 years' experience.
2. We keep fastest delivery. Since we have perfect production equipment.
