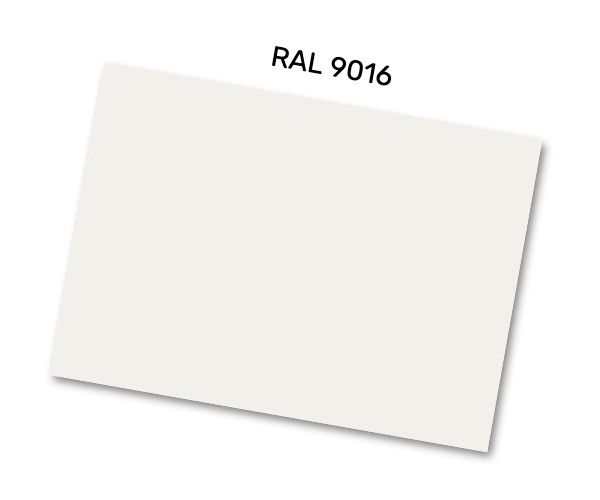

RAL 9016, a classic pure white color, is widely used in North American architectural facades, industrial plant cladding, transportation equipment, and appliance housings due to its stable performance and broad applicability. We BCM Alu, located in Canada, leverages high-quality aluminum ingot resources and advanced roll coating technology to produce painted aluminium RAL 9016 sheet coil that meet high-level industry standards in core indicators such as coating adhesion, weather resistance, and mechanical properties, providing global customers with reliable and economical metal coating solutions.

Regarding the core performance of the coating system, our RAL 9016 aluminium sheets use high-weather-resistant polyester resin as the main topcoat, combined with a composite coating structure of chromate passivation and epoxy primer. The total dry film thickness is strictly controlled at 25-30μm, with a primer thickness ≥5μm and a topcoat thickness ≥20μm. According to third-party testing, the coating's cross-cut adhesion test met the Class 0 requirement of GB/T 9286-1998 standard, meaning the coating showed no peeling. In salt spray resistance testing, it withstood 1000 hours continuously in a neutral salt spray environment without red rust or blistering, a 38% improvement over the 720-hour resistance standard of conventional products, making it particularly suitable for harsh coastal environments with high humidity and high salt spray. Addressing the industry pain point of white coatings easily yellowing, we added 2.5% nano-level UV absorber and 0.8% hindered amine light stabilizer to the topcoat formula. After 1000 hours of QUV accelerated aging testing, the coating color difference ΔE ≤ 1.5, and gloss retention ≥ 85%, effectively ensuring the product's consistent appearance after long-term use.

Optimization of substrate performance is a crucial support for the product's overall advantages. Our company uses aluminum sheets rolled from 1100/3003 series aluminum ingots as the base material. The thickness tolerance of the base material is controlled within ±0.02mm, and the flatness error of the sheet surface is ≤2mm/m, ensuring the uniformity of subsequent coating and processing formability. After being strengthened by the cold rolling process, the tensile strength of the base material reaches 150-180MPa, the yield strength ≥110MPa, and the elongation ≥12%, which can meet the complex processing requirements such as bending and rolling, and performs excellently in the fabrication of irregularly shaped components for building curtain walls. In addition, the product surface undergoes fine degreasing and electrochemical polishing pretreatment, and the surface roughness Ra is controlled within 0.3-0.5μm, which not only improves the adhesion between the coating and the base material, but also ensures the delicate texture and uniform gloss of the white coating (60° gloss controlled at 30-40GU).

RAL 9016's white is not ordinary white; the trace amount of bluish-gray undertone added to its formula gives it unique parameters L97.3/a-1.2/b*-2.5 in the CIE colorimetric coordinate system. This precise color control gives the white aluminum sheet a significant advantage in light reflection under direct sunlight—actual measurement data shows that its solar reflectance reaches 0.82, a 15% improvement compared to traditional white coatings. For example, in a commercial complex project in Calgary, Canada, a curtain wall system using RAL 9016 aluminium sheets can reduce indoor temperature by 3-5°C in summer and lower air conditioning energy consumption by 18%, directly verifying its photothermal management efficiency. Compared to the pure white RAL 9006 aluminum sheet, RAL 9016 (Traffic white) leans more towards a neutral white in color, with slightly lower brightness (L* value 89 vs. RAL 9006's 93). However, both have essentially the same coating performance indicators, allowing customers to choose flexibly based on the optical requirements of specific applications.

For the North American market's demand for customized processing, RAL 9016 painted aluminum sheet demonstrates excellent process compatibility. In a Toronto rail transit vehicle renovation project, when 0.8mm thick sheet was stamped into complex curved components, the coating showed no cracks or peeling. When using laser cutting, the coating ablation width at the cut edge was controlled within 0.2mm, significantly better than the industry average of 0.5mm. This processing stability is attributed to the toughening effect of the nano-sized silica dispersion in the coating, which increases the elongation at break to 8% while maintaining the material's hardness.

From the perspective of production control and application assurance, our company adopts imported German 20-roll precision rolling equipment and fully automated roll coating production lines to achieve online real-time monitoring and closed-loop control of coating thickness. The color difference between product batches is ΔE≤0.8, ensuring consistency in large-scale supply. The product has passed ISO 14001 environmental management system certification and AAMA 2605-2018 high weather-resistant color-coated metal sheet standard certification. Each batch of products is accompanied by complete material certificates and performance test reports.

In terms of application, the areal density of painted aluminium RAL 9016 is only 2.7kg/m² (1.0mm thick), which is 65% lighter than color coated steel sheets of the same thickness, significantly reducing the structural load on buildings. At the same time, it has excellent thermal conductivity and recyclability, with a recycling rate of over 98%, which aligns with the development trend of green building and environmentally friendly industry, giving it significant competitiveness in markets with stringent environmental requirements such as North America and Europe.
