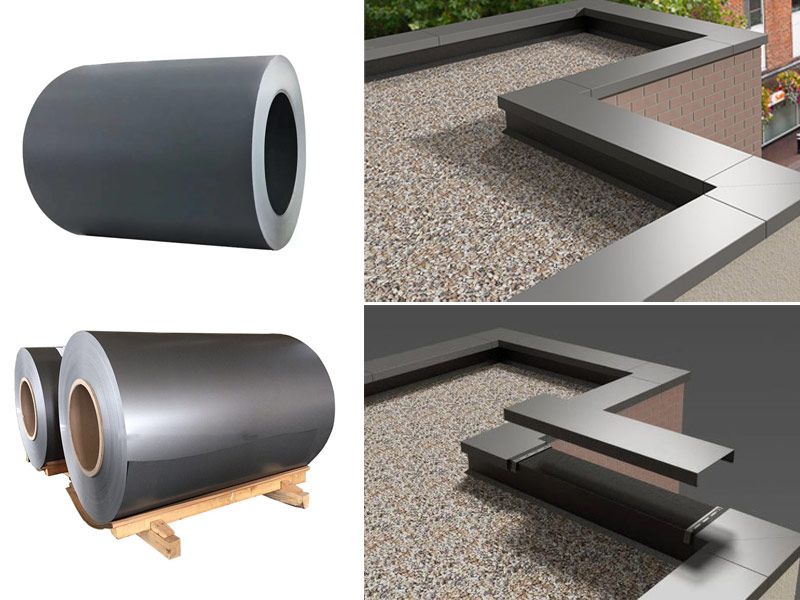

Wall coping, parapet coping, and exterior wall finishing are the most critical waterproofing joints on building facades, and also the weakest points most prone to water seepage, corrosion, cracking, and fading. Traditional sheet metal, ordinary stainless steel, or inferior soated aluminum are highly susceptible to deformation due to temperature differences and rain corrosion, leading to joint failure, damp walls, facade damage, and high subsequent repair costs. Addressing the professional needs of building exterior wall projects, roof wall finishing, and curtain wall coping systems, BCM Aluminum has launched color coated aluminum coils for wall coping systems. Specifically designed for building finishing structures, these coated aluminum coils combine waterproof structural compatibility, weather resistance, and decorative integrity, making them the preferred finishing material for standardized modern building projects.

Color coated aluminum coil for wall coping system uses engineering-grade, mature aluminum substrates, compatible with high-speed bending and roll forming processes for various coping profiles. The mainstream specifications utilize 3003-H14 and 5052-H32 alloy tempers, with standard thicknesses ranging from 0.4mm to 1.2mm. The panels offer high flatness and moderate rigidity, ensuring precise bending angles, no springback, and no cracks, while also meeting the structural load-bearing and deformation resistance requirements of coping components. 3003-H14 aluminum offers high cost-effectiveness and excellent formability, making it suitable for most civil building exterior wall copings. 5052-H32 aluminum boasts higher strength and stronger salt spray resistance, widely used in building finishing systems in coastal, high-humidity, and industrially corrosive areas.

For long-term outdoor exposure, color coated aluminum coil for wall coping system employs a building-grade high-weather-resistant coating system, offering two main coating options: HDP high-weather-resistant polyester and PVDF fluorocarbon, catering to different warranty periods. The entire process employs pre-treatment passivation, epoxy primer sealing, and multi-layer roller coating with high-temperature curing of weather-resistant topcoat. The coating adhesion is stable, reaching ASTM 4B level, ensuring the paint film does not crack or peel after bending and forming. Customizable with a full range of RAL standard color charts, adaptable to the overall color scheme of building facades, solving the problems of monotonous colors and significant color differences during renovations associated with traditional coping materials, ensuring a unified and aesthetically pleasing building facade.

Compared to traditional coping materials, the core advantages of color coated aluminum coils lie in their waterproof, weather-resistant, and maintenance-free performance. Aluminum itself is rust-free and corrosion-resistant, and combined with a dense protective coating, it effectively blocks rainwater, moisture, and UV rays from eroding the top of the wall, eliminating common engineering problems such as water seepage, mold, and surface peeling from the source. The product has a stable coefficient of thermal expansion, making it resistant to deformation, warping, and loosening under varying day-night temperatures and seasonal temperature changes, greatly improving the sealing stability of the coping system. The surface coating is anti-aging, stain-resistant, and self-cleaning, and does not easily fade or chalk under long-term outdoor use, significantly reducing the cost of later building maintenance.

Lightweight and easy-to-process material, capable of on-site secondary cutting and shaping, suitable for standardized mass production and custom-made coping components. Color coated aluminum coil is widely used in various building systems such as parapet coping, roof wall finishing, column coping, curtain wall finishing, balcony sealing, and perimeter wall coping. The product meets general building material testing standards, is environmentally friendly and recyclable, and is suitable for various commercial buildings, municipal engineering projects, industrial plants, and residential facade projects.

BCM color coated aluminum coil for wall coping system, with stable structural performance and excellent weather resistance and waterproofing capabilities, solve the long-standing pain points of building finishing systems, providing global engineering clients with integrated, highly durable, and low-maintenance exterior wall finishing solutions
