Outdoor signs serve as the core carriers of information transmission and safety guidance; their visual clarity and structural durability directly impact guidance efficiency and public safety. From urban road signs and commercial billboards to factory warning signs and scenic area wayfinding signs, signs are constantly exposed to complex environments such as direct ultraviolet radiation, acid rain corrosion, salt spray, sea wind, and fluctuating high and low temperatures. Traditional inkjet-painted iron plates are prone to rust and fading, acrylic sheets are prone to brittleness and cracking, and ordinary polyester coated aluminum coils show significant loss of luster and discoloration after 3-5 years. Frequent replacement and maintenance significantly increase the total life cycle cost. PVDF coated aluminum coils, with their superior weather resistance and color retention, and stable substrate characteristics, have become the standard material for high-end outdoor signage worldwide, fundamentally solving the problem of long-term service life for outdoor signs.

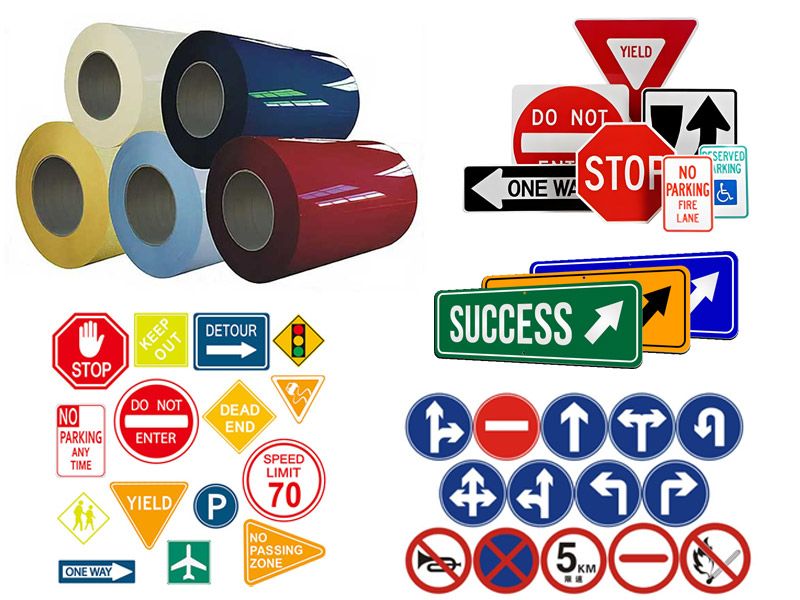

This PVDF coated aluminum coil is specifically optimized for signage applications. The core substrate is AA3003-H14 aluminum-manganese alloy, which can be upgraded to AA5052-H32 aluminum alloy for highly corrosive coastal areas. Standard thicknesses range from 0.4mm to 1.2mm, with a surface flatness of ≤0.3mm/m, free of waves and scratches. It is fully compatible with conventional sign processing techniques such as shearing, bending, stamping, and edge rolling. AA3003 alloy offers excellent rust resistance and low springback during forming, resulting in flat and rigid sign panels that remain unchanged and do not warp over long-term use. Its lightweight nature significantly reduces the difficulty of high-altitude installation and structural load, making it suitable for various installation methods including column-mounted, suspended, and wall-mounted installations.

The coating system is crucial for the long-term service life of signage. This PVDF coated aluminum coil for signage uses a double-coating, double-baking process, with a PVDF fluorocarbon coating dry film thickness ≥40μm on the front side and a fluororesin content of no less than 70%. Its core performance meets the requirements of AAMA 2605 standards. Compared to ordinary polyester coatings, PVDF coatings offer more than four times the UV resistance. After 5000 hours of accelerated aging under xenon lamps, the gloss retention rate remains ≥80%, with a color difference ΔE ≤2.0. Under normal outdoor service, it can maintain vibrant colors and clear information for over 15 years without significant fading or chalking. Simultaneously, the coating exhibits excellent chemical corrosion resistance, resisting acid rain, industrial exhaust gases, and coastal salt spray. A 2000-hour neutral salt spray test showed no blistering, peeling, or rust, making it particularly suitable for signage systems in harsh environments such as coastal industrial zones and chemical industrial parks.

In engineering applications, PVDF coated aluminum coil for signage supports full-color RAL and Pantone customization, ensuring accurate color reproduction. The color difference within the same batch is ΔE ≤1.0, meeting the color consistency requirements of large-scale projects such as urban road signage systems and chain store signs. The coating adhesion reaches ASTM D3359 4B grade, with no cracking or peeling after shearing, bending, and punching. It is compatible with subsequent secondary processing techniques such as screen printing and reflective film lamination, and suitable for the production of various types of signs, including traffic signs, warning signs, and landmark structures. The aluminum material itself is 100% recyclable, aligning with the global trend of green building materials and low-carbon engineering.

From municipal transportation to commercial landscapes, from industrial plants to cultural and tourism attractions, PVDF coated aluminum coils, with their comprehensive advantages of long-lasting color retention, corrosion resistance, lightweight, and easy installation, significantly extend the lifespan of signs, reduce subsequent renovation and maintenance costs, and provide global signage engineering clients with a highly reliable and cost-effective long-lasting signage material solution.
