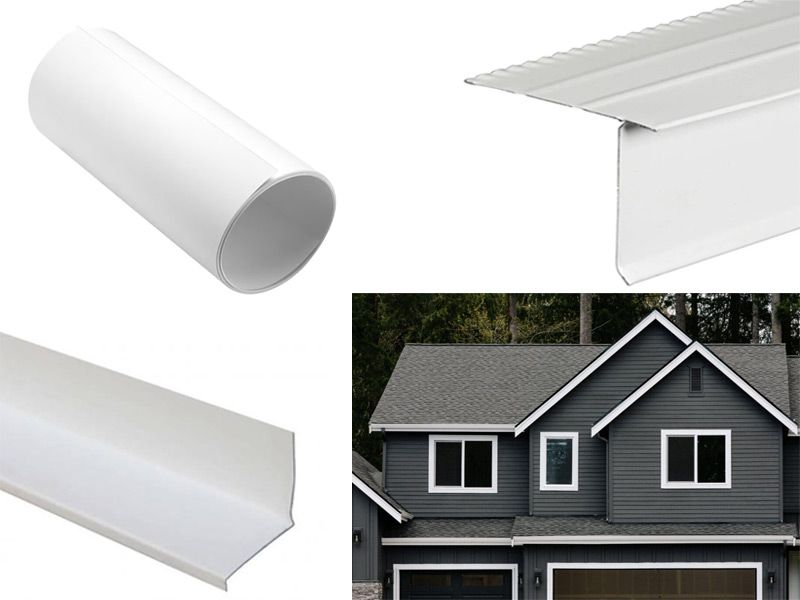

White aluminum flashing roll is a functional sealing material specifically designed to address the pain point of joint leakage in building envelope systems. Its core function is to prevent rainwater and moisture from seeping into the building structure along the junctions of roofs, walls, and structural components. Simultaneously, its white coating provides weather resistance and aesthetic harmony. Unlike ordinary color coated aluminum rolls that focus on decorative attributes, aluminum flashing rolls prioritize on-site molding adaptability, coating sealing, and long-term weather resistance stability, making them a mainstream upgrade solution in global building waterproofing projects, replacing galvanized iron sheets and asphalt flashing materials.

The base material of white aluminum flashing roll is selected based on AA3003-H14 rust-resistant aluminum-manganese alloy, a classic formula for flashing products that has been proven in global engineering projects. This alloy combines excellent cold-bending plasticity with moderate structural toughness, making it suitable for on-site manual bending and simple roll forming. It easily handles irregularly shaped finishing points such as chimney bases, skylight perimeters, and internal/external corners. After bending, it exhibits no micro-cracks and minimal springback, ensuring a tight fit between overlapping surfaces and eliminating water seepage gaps. Standard thicknesses range from 0.30mm to 0.80mm, and standard widths include 150mm, 300mm, and 450mm, corresponding to 6-inch, 12-inch, and 18-inch imperial standards. Roll lengths can be customized. Thickness tolerance is controlled within ±0.02mm, and board flatness is ≤0.5mm/m, with no warping or wavy deformation, ensuring tight joints and even stress distribution after installation.

The white coating of aluminum flashing roll is not merely decorative but also provides both protection and functionality. The white flashing roll employs a double-sided roller coating and curing process. The front side features a high weather resistant white polyester topcoat with a stable dry film thickness of 20–25 μm, while the back side is coated with an epoxy anti-corrosion primer, forming a fully encapsulated protective system for the substrate. The core advantage of the white topcoat lies in its temperature control effect: its solar reflectivity is significantly higher than that of darker coatings, reducing the surface temperature of the white aluminum coil by more than 15°C in summer. This significantly mitigates the thermal expansion and contraction caused by diurnal and seasonal temperature differences, reducing sealant cracking and misalignment issues due to repeated deformation, thus extending the effective lifespan of the waterproofing system from a structural perspective. The coating formula includes an anti-yellowing additive, and after 1000 hours of accelerated aging testing under xenon lamps, the color difference ΔE is ≤2.5. Under normal outdoor conditions, it can maintain color stability for more than 8 years, blending naturally with light-colored roofs and exterior wall finishes, avoiding the visual jarring effect of dark-colored water seepage.

Waterproof reliability is the core evaluation criterion for painted aluminum flashing roll product. The coating adhesion reaches ASTM D3359 4B grade. After repeated bending and stamping, the paint film remains intact without cracking or peeling, preventing substrate oxidation caused by coating damage and ensuring the long-term integrity of the waterproof structure. It shows no blistering or rust after 1000 hours of neutral salt spray testing, resisting rain, moisture, and mild industrial corrosion. Compared to traditional galvanized iron flashing, aluminum flashing rolls are rust-free for life, preventing dripping and wall contamination due to rust, and extending overall service life by more than three times. Compared to asphalt-based flashing materials, it has a wider temperature resistance range, not flowing in high summer temperatures and not cracking in low winter temperatures, and is lighter, making construction, handling, and high-altitude operations more convenient.

White aluminum flashing roll is widely applicable to various high-leakage-risk building points such as pitched roof flashing, chimney and pipe root sealing, door and window lintel waterproofing, parapet wall joints, and skylight perimeter sealing. It is also compatible with various supporting materials such as sealants, waterproof membranes, and metal fasteners, adapting to the waterproofing needs of buildings in different climate zones worldwide.

With its reliable waterproof performance, long-lasting weather resistance, and harmonious appearance, the white aluminum flashing roll not only solves the industry pain points of traditional flashing materials such as easy corrosion, short lifespan, and cumbersome maintenance, but also takes into account the visual unity of building facades, providing a long-lasting, reliable, and easy-to-construct integrated waterproofing and sealing solution for global construction projects.
